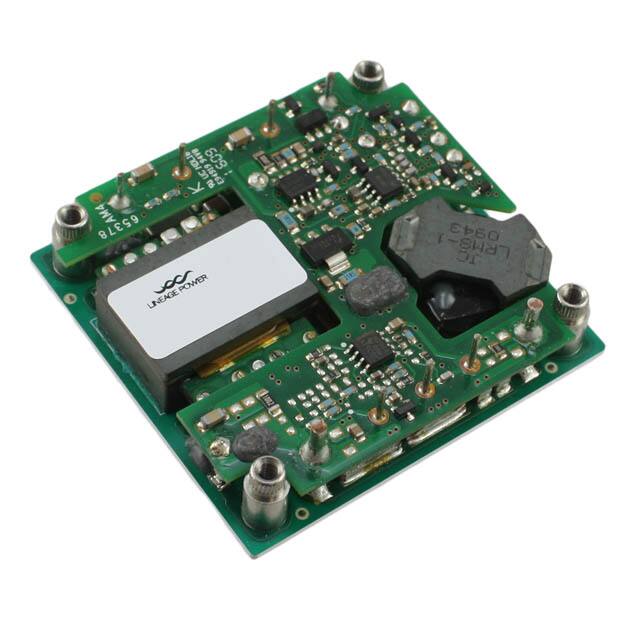

JBW050F1 The JBW050F1 is an isolated DC-DC converter from ABB Power Electronics with a 36-75V input range and a regulated 3.3V output at 10A (33W). It features through-hole mounting in a 9-DIP module package.
Mfr Part #:

JBW050F1

Available from 1 distributors
Mfr Name: ABB Power Electronics
ABB Power Electronics
The JBW050F1 is an isolated DC-DC converter from ABB Power Electronics with a 36-75V input range and a regulated 3.3V output at 10A (33W). It features through-hole mounting in a 9-DIP module package.
✓ Total Stock: 4,000 pcs

JBW050F1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

JBW050F1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Control Features
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
Width
View Similar Products (0)

JBW050F1 Description

Short technical summary and product information.

The JBW050F1 is an isolated DC-DC converter module from ABB Power Electronics designed for distributed power architectures. It operates over a 36V to 75V DC input range and delivers a precisely regulated 3.3V output at up to 10A, providing 33W of output power with a typical efficiency of 81%.



The module includes a comprehensive set of features: remote on/off control (active low enable), overcurrent protection (OCP), overtemperature protection (OTP), and overvoltage protection (OVP). It also supports remote sense and output voltage trim, allowing flexibility in system integration. The converter uses constant frequency switching for low output noise.



The JBW050F1 comes in a 9-DIP through-hole package measuring 61.0mm x 57.9mm x 12.7mm, with a metal case for improved thermal performance. Threaded-through holes are provided for mounting or heat sink attachment. The operating temperature range is -40°C to 100°C, making it suitable for industrial and commercial ITE applications.



The module is CE marked and recognized under UL 60950, CSA C22.2 No. 60950-00, and EN 60950 standards. Note that RoHS and REACH compliance data is unverified and should be confirmed with the manufacturer.

JBW050F1 Quick Information

Product Type: Isolated DC-DC Converter
Series: JBW (33W)
Canonical Name: JBW050F1 Isolated DC-DC Converter, 3.3V Output, 33W
Subcategory: 9-DIP Module DC-DC Converters

JBW050F1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

JBW050F1 Features

  • Isolated DC-DC converter with 2:1 input range.
  • Delivers 3.3V output at 10A up to 33W.
  • High efficiency of 81% typical.
  • Includes remote on/off and protection features.
  • Through-hole 9-DIP module package.

JBW050F1 Applications

  • Ideal for distributed power architectures.
  • Suitable for workstation power supplies.
  • Used in telecom and datacom equipment.
  • Perfect for embedded computing applications.

JBW050F1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the JBW050F1?

The input voltage range is 36V to 75V DC.

What is the output voltage and current?

The output is 3.3V DC at up to 10A, providing 33W of power.

What package does the JBW050F1 come in?

It comes in a 9-DIP through-hole module package with dimensions 61.0mm x 57.9mm x 12.7mm.

What is the operating temperature range?

The operating temperature range is -40°C to 100°C.

Is the JBW050F1 RoHS compliant?

It is listed as RoHS3 compliant, but this information is unverified and should be confirmed with an official compliance document.

What protection features does the JBW050F1 include?

It includes overcurrent protection (OCP), overtemperature protection (OTP), and overvoltage protection (OVP).

What is the efficiency of the JBW050F1?

The typical efficiency is 81%.
