Mfr Part #:

JANTXV2N3767

Name: JANTXV2N3767
SKU: JANTXV2N3767

Mfr Name: Microchip Technology

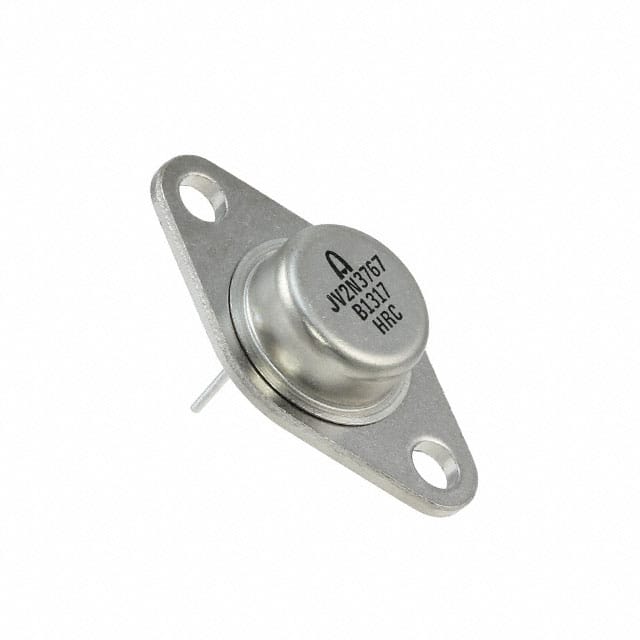

TRANS NPN 80V 4A TO66

Stock on Request

JANTXV2N3767 Description

Short technical summary and product information.

TRANS NPN 80V 4A TO66

JANTXV2N3767 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

JANTXV2N3767 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

JAN2N3767

Microchip Technology

The JAN2N3767 is an NPN Power Silicon Transistor from Microchip Technology. It features 80V VCEO, 4A max collector current, and 25W max power dissipation.

View Part

Home

Account

Category	Transistors - Bipolar (BJT) - Single
Manufacturer Name	Microchip Technology
Current	4 A
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 500mA, 5V
Mounting Type	Through Hole
Operating Temperature	-65°C ~ 200°C (TJ)
Power	25 W
Supplier Device Package	TO-66 (TO-213AA)
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	2.5V @ 100mA, 1A
Voltage	80 V
