| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Current | |
| Forward Voltage (Vf) | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Speed | |
| Storage Temperature | |
| Supplier Device Package | |
| Technology | |
| Voltage |

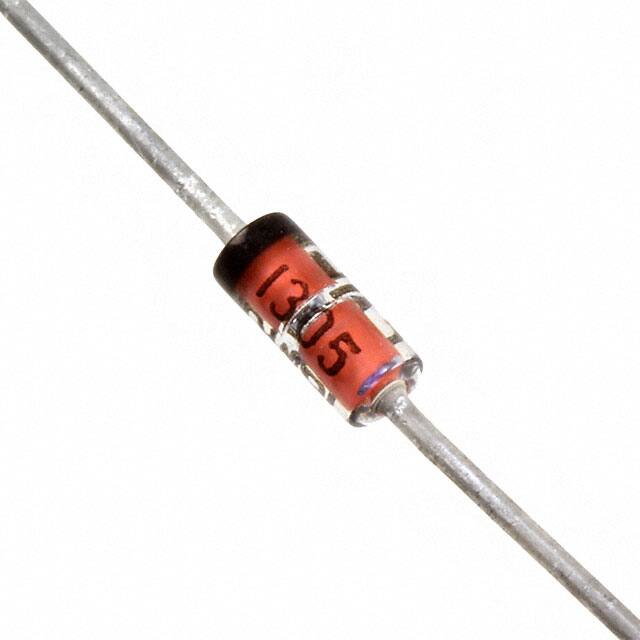

The JANTXV1N5711-1 is a JANTXV qualified Schottky barrier diode from Microchip Technology, part of the 1N5711-1 series. It is designed for high-reliability applications and is metallurgically bonded in a hermetically sealed DO-35 glass package.
Key electrical specifications include a maximum reverse voltage of 50V, average rectified current of 33mA, forward voltage of 1V at 15mA, and junction capacitance of 2pF at 0V and 1MHz. The operating temperature range is -65°C to 150°C.
This diode is suitable for small signal switching applications due to its fast speed rating (Small Signal =< 200mA). The through-hole mounting allows for flexible lead placement. The device is ESD sensitive to Class 1, requiring proper handling.
The package is DO-204AH (DO-35) axial leaded. Surface mount variants (UB and UR packages) are also available in the same series, but this specific part is through-hole.
| Qty | Low | High |
|---|---|---|
| 100+ | $34.83 | $34.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50V.
33mA.
1V.
DO-204AH (DO-35) axial leaded through-hole package.
2pF at 0V and 1MHz.
-65°C to 150°C.
Schottky barrier.
