| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
480 pcs
|
480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bidirectional Channels | |
| Industrial Grade | |
| Lead Style | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Supplier Device Package | |
| Type |

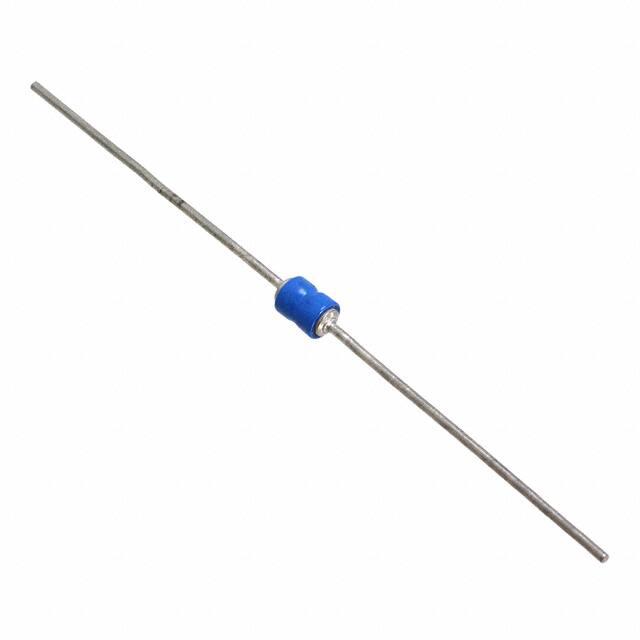

The Microsemi Corporation JANTX1N6131A is a TVS (Transient Voltage Suppressor) Diode designed for general purpose applications. It features a typical reverse standoff voltage of 86.6V and a maximum clamping voltage of 151.3V at a peak pulse current of 3.3A (10/1000µs).
This diode offers a breakdown voltage of 104.5V and a peak pulse power rating of 500W. It operates within a temperature range of -55°C to 175°C (TJ) and has a single bidirectional channel.
The JANTX1N6131A is available in an axial package and is mounted via a through-hole configuration. The packaging type is bulk. This component is part of the Military, MIL-PRF-19500/516 series.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical reverse standoff voltage is 86.6V.
The maximum clamping voltage is 151.3V at Ipp.
The peak pulse current rating is 3.3A (10/1000µs).
The peak pulse power is 500W.
The minimum breakdown voltage is 104.5V.
The operating temperature range is -55°C to 175°C (TJ).
It comes in a B, Axial package and is mounted through hole.
