| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
172 pcs
|
172 pcs | On Request | 1 | On Request | On Request | 0824 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Bidirectional Channels | |
| Current | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Reverse Standoff (Typ) |

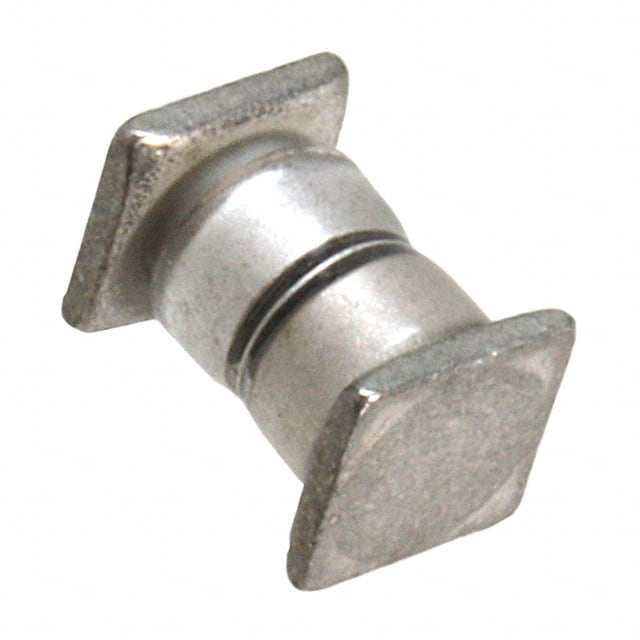

The JANTX1N6114AUS is a Zener-type TVS diode from Microchip Technology designed for general purpose transient overvoltage protection. It is a single bidirectional channel device with a typical reverse standoff voltage of 16.7 V and a maximum clamping voltage of 30.5 V at 16.4 A peak pulse current. The diode can handle 500 W of peak pulse power.
This device is mounted using surface mount technology and is housed in an E-MELF package. It operates over a junction temperature range of -55°C to 175°C. The part does not include power line protection features.
Typical applications include general purpose circuit protection in systems requiring a robust Zener-based clamping solution. The E-MELF package is suited for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.28 | $17.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical reverse standoff voltage is 16.7V.
The maximum clamping voltage is 30.5V.
The maximum peak pulse current is 16.4A.
The nominal peak pulse power is 500W.
It is available in an E-MELF surface mount package.
The operating temperature range is -55°C to 175°C.
RoHS3 compliance is indicated but unverified.
