| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage |

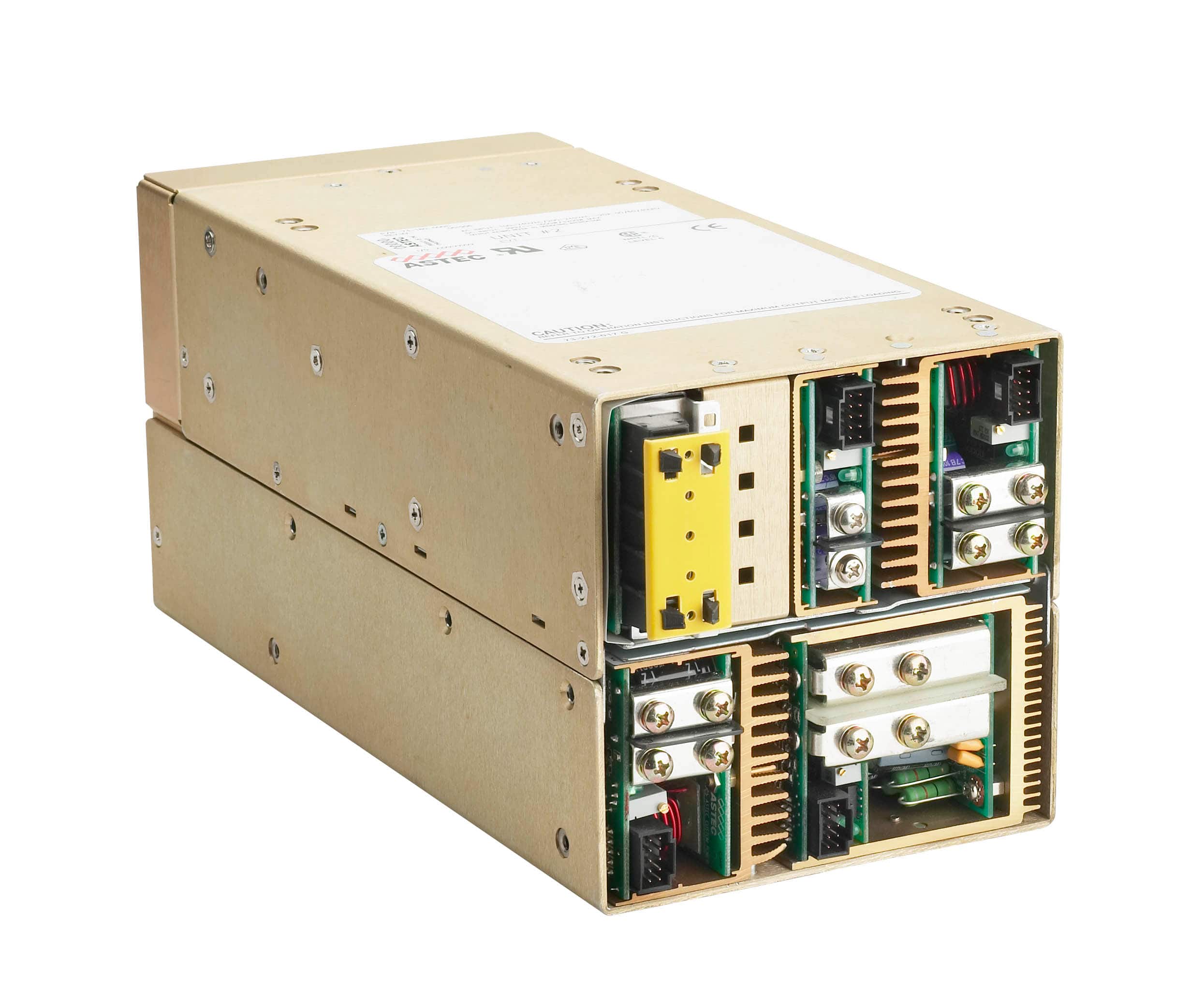

This AC/DC converter from Artesyn Embedded Power, part number IVS8-3D0-3D0-3D0-3D0-E0-A, is designed for ITE (Commercial) and Medical applications. It operates with a 3.3V output voltage and can supply up to 150A, providing a total power of 1980W.
The converter features an efficiency rating of 85% and is designed for chassis mounting. Its dimensions are 279.4mm in length, 203.2mm in width, and 127.0mm in height. Key features include adjustable output, I²C interface, PFC, PMBus™, remote on/off, remote sense, and a standby output, along with a universal input capability.
The operating temperature range is from -40°C to 70°C with derating. It is compliant with standards such as 60601-1 and 60950-1, and carries approvals from CB, CE, CSA, and UL.
The output voltage is 3.3V.
The converter provides a maximum current of 150 A and a power output of 1980W.
The dimensions are 279.4mm in length, 203.2mm in width, and 127.0mm in height.
The operating temperature range is -40°C to 70°C, with derating.
It meets standards 60601-1 and 60950-1.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
