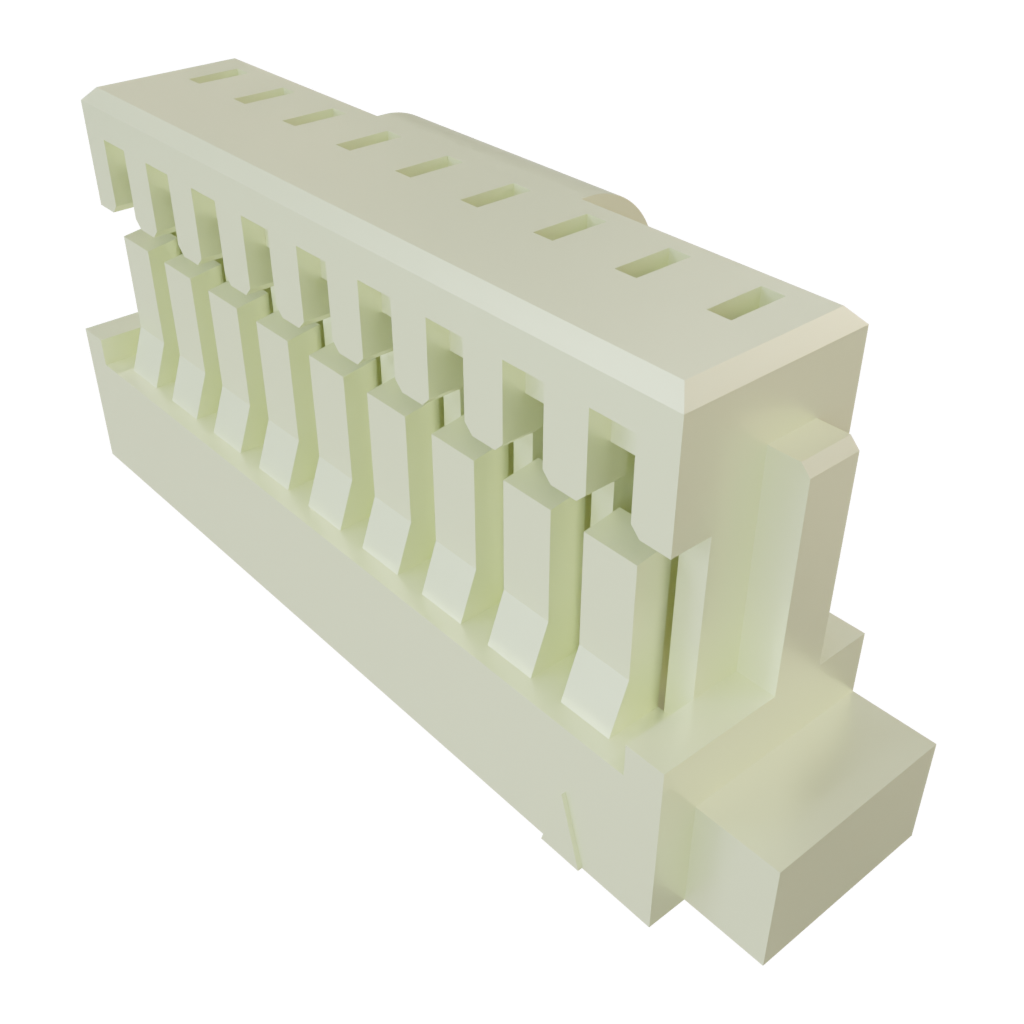

ISS1-09 Samtec ISS1-09 is a 9 position, single row, 1.00mm pitch female socket crimp housing for wire-to-board or wire-to-wire applications. It features a positive latch and is designed for free hanging in-line mounting.
Mfr Part #:

ISS1-09

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec ISS1-09 is a 9 position, single row, 1.00mm pitch female socket crimp housing for wire-to-board or wire-to-wire applications. It features a positive latch and is designed for free hanging in-line mounting.
✓ Total Stock: 50 pcs
$ Price Range: $0.78

ISS1-09 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISS1-09 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Termination
Contact Type
Housing Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
Tape & Reel
View Similar Products (0)

ISS1-09 Description

Short technical summary and product information.

The Samtec ISS1-09 is a 9 position, single row, female socket crimp housing from the Micro Mate series. It features a 1.00mm (0.039 inch) pitch and is designed for wire-to-board and wire-to-wire applications. The housing accepts female socket contacts with crimp termination and includes a positive latch for secure mating.



The housing is made of nylon and is intended for free hanging (in-line) mounting. It is available in bulk packaging with a standard package quantity of 25,000 pieces. The ISS1-09 is RoHS3 compliant, REACH unaffected (no SVHCs), and UL recognized (E111594). It is also compliant with China RoHS (Non Hazardous - E) and has no known PFAS or California Proposition 65 warning.

ISS1-09 Quick Information

Product Type: Rectangular Connector Housing
Series: ISS1
Canonical Name: Samtec ISS1-09 1.00mm Pitch Single Row Female Socket Crimp Housing with Positive Latch
Subcategory: Wire-to-Board / Wire-to-Wire Crimp Housing

ISS1-09 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Not Moisture Sensitive
REACH Status: Compliant
Lead Free: Yes

ISS1-09 Estimated Pricing

Qty Low High
1+ $0.78 $0.78

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISS1-09 Features

  • 9 position single row female socket housing.
  • 1.00mm pitch for compact wire-to-board connections.
  • Positive latch for secure mating retention.
  • Crimp termination for reliable wire attachment.
  • Free hanging in-line mounting design.

ISS1-09 Applications

  • Wire-to-board interconnects in compact electronic devices.
  • Wire-to-wire cable assemblies for internal wiring.
  • Automotive interior harnesses (A-Series variant available).
  • Industrial control and sensor connections.

ISS1-09 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the pitch of the ISS1-09 connector housing?

The pitch is 1.00mm (0.039 inches).

How many positions does the ISS1-09 have?

It has 9 positions in a single row.

What type of mounting does the ISS1-09 use?

It is designed for free hanging (in-line) mounting.

What is the contact termination type for the ISS1-09?

The contacts are terminated by crimping.

Is the ISS1-09 RoHS compliant?

Yes, it is RoHS3 compliant.

What is the packaging quantity for the ISS1-09?

It is bulk packaged with 25,000 pieces per package.
