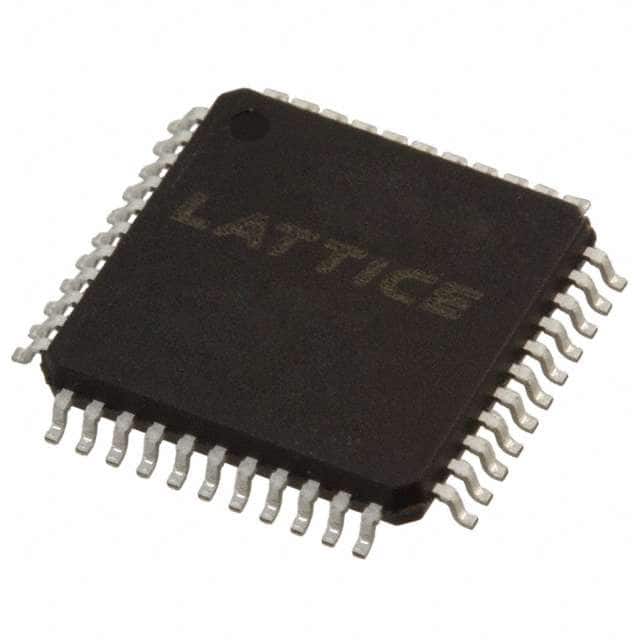

ISPLSI 2064VE-100LT44 The Lattice Semiconductor ISPLSI 2064VE-100LT44 is a high-density CPLD with 64 macrocells and 2000 PLD gates. It operates at 3.3V and features a 10ns propagation delay.
Mfr Part #:

ISPLSI 2064VE-100LT44

Available from 2 distributors
Mfr Name: Lattice Semiconductor Corporation
Lattice Semiconductor Corporation
The Lattice Semiconductor ISPLSI 2064VE-100LT44 is a high-density CPLD with 64 macrocells and 2000 PLD gates. It operates at 3.3V and features a 10ns propagation delay.
✓ Total Stock: 1,541 pcs

ISPLSI 2064VE-100LT44 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
1,393 pcs
On Request
1393 pcs On Request 1 On Request On Request 0126+ On Request On Request
OTL Components ✓
Non-Authorised Inventory information
148 pcs
On Request
148 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISPLSI 2064VE-100LT44 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Delay Time tpd(1) Max
Lead Spacing
Mounting Type
Number of Gates
Number of I
Number of I/O
Number of Logic Elements
Number of Macrocells
Operating Temperature
Operating Voltage
Programmable Type
Supplier Device Package
Voltage Supply
View Similar Products (0)

ISPLSI 2064VE-100LT44 Description

Short technical summary and product information.

The Lattice Semiconductor ISPLSI 2064VE-100LT44 is a Complex Programmable Logic Device (CPLD) from the ispLSI 2000VE family. It offers 2000 PLD gates and 64 macrocells, providing high-density programmable logic capabilities.



This device operates at a 3.3V supply voltage and features a maximum propagation delay of 10 ns. It is designed for in-system programmability using a Boundary Scan Test Access Port (TAP).



The ISPLSI 2064VE-100LT44 comes in a 44-TQFP package and is suitable for surface mounting. It operates within a temperature range of 0°C to 70°C (TA). The device is built using E2CMOS technology, offering non-volatile reprogrammability.

ISPLSI 2064VE-100LT44 Quick Information

Product Type: CPLD
Series: ispLSI 2064VE
Canonical Name: Lattice Semiconductor Corporation ispLSI 2064VE-100LT44 CPLD
Subcategory: Complex Programmable Logic Devices

ISPLSI 2064VE-100LT44 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ISPLSI 2064VE-100LT44 Features

  • High density programmable logic.
  • 64 macrocells and 2000 PLD gates.
  • 3.3V low voltage operation.
  • 10ns maximum propagation delay.
  • 44-TQFP surface mount package.

ISPLSI 2064VE-100LT44 Applications

  • Fast counters and state machines.
  • Address decoders and logic.
  • Flexible bus interface logic.
  • Wired-OR and bus arbitration.

ISPLSI 2064VE-100LT44 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the ISPLSI 2064VE-100LT44?

The operating voltage is 3.3V.

What package type is the ISPLSI 2064VE-100LT44 supplied in?

The device is supplied in a 44-TQFP package.

What is the operating temperature range for this CPLD?

The operating temperature range is 0°C to 70°C (TA).

Is the ISPLSI 2064VE-100LT44 RoHS compliant?

The RoHS status is RoHS3 Compliant.

What is the maximum propagation delay of the ISPLSI 2064VE-100LT44?

The maximum propagation delay is 10 ns.

How many macrocells does the ISPLSI 2064VE-100LT44 have?

The device has 64 macrocells.

What is the maximum operating frequency?

The maximum operating frequency is 100 MHz.
