| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
160 pcs
|
160 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Lead Spacing | |
| Mounting Type | |
| Number of Gates | |
| Number of I | |
| Number of I/O | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage Supply |

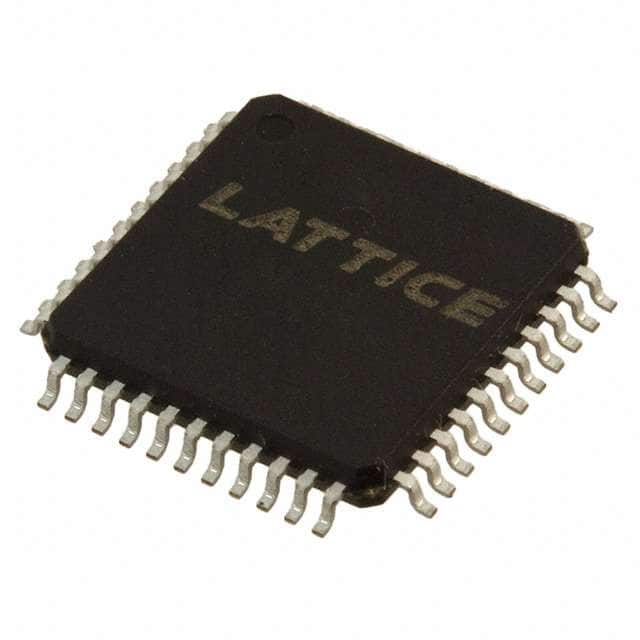

The Lattice Semiconductor Corporation ISPLSI 2032A-135LT44 is a high-density programmable logic device (CPLD) designed for various embedded applications. It features 32 macrocells and 32 I/O pins, offering significant logic capacity with 1000 PLD gates.
This device operates within a supply voltage range of 4.75V to 5.25V and has a maximum propagation delay of 7.5 ns. It is built on advanced E2CMOS technology and supports in-system programmability, allowing for easier design iterations and faster time-to-market.
The ISPLSI 2032A-135LT44 is housed in a 44-TQFP package and is designed for surface mounting. It operates within a temperature range of 0°C to 70°C (TA).
Key specifications include a maximum operating frequency of 180 MHz and a maximum propagation delay of 5.0 ns as per the datasheet. The device is electrically erasable and reprogrammable, offering non-volatile storage of its configuration.
The maximum operating frequency is 180 MHz.
The maximum propagation delay is 7.5 ns.
It has 32 macrocells.
The voltage supply range is 4.75V to 5.25V.
The operating temperature is 0°C to 70°C (TA).
It is supplied in a 44-TQFP package.
Yes, it is an In System Programmable device.
