| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Delay Time tpd(1) Max | |
| Lead Spacing | |
| Mounting Type | |
| Number of Gates | |
| Number of I | |
| Number of Logic Elements | |
| Number of Macrocells | |
| Operating Temperature | |
| Programmable Type | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage Supply |

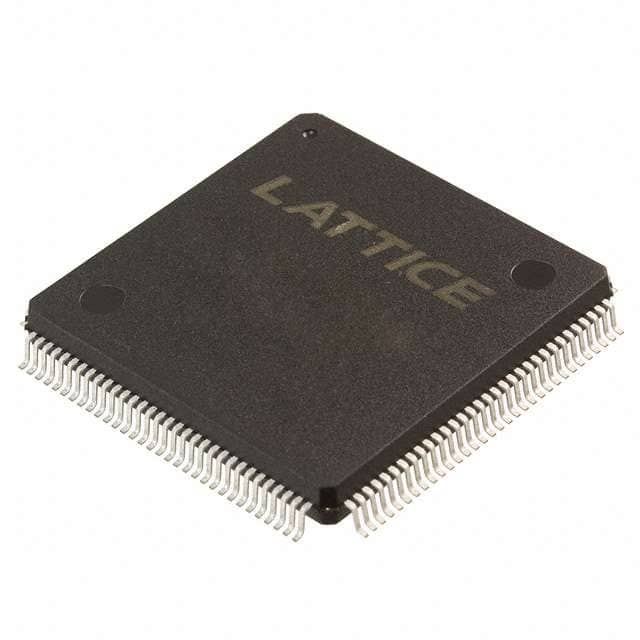

The Lattice Semiconductor ISPLSI 1048E-100LQ is a Complex Programmable Logic Device (CPLD) designed for high-density applications. It offers 192 macrocells and 8000 PLD gates, providing significant logic capacity.
This device operates with a supply voltage range of 4.75V to 5.25V and features a maximum propagation delay of 7.5 ns, supporting high-speed operations. It is manufactured using E2CMOS technology, making it electrically erasable and reprogrammable.
The ISPLSI 1048E-100LQ is designed for in-system programmability (ISP), allowing for easier manufacturing and prototyping. It includes 96 I/O pins and 48 logic elements/blocks, facilitating flexible system design.
Packaged in a 128-BQFP surface mount configuration, this CPLD is suitable for embedded systems requiring moderate logic density and speed. The operating temperature range is 0°C to 70°C (TA).
The maximum propagation delay is 7.5 ns.
The operating voltage range is 4.75V to 5.25V.
It is supplied in a 128-BQFP package.
The operating temperature range is 0°C to 70°C (TA).
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
