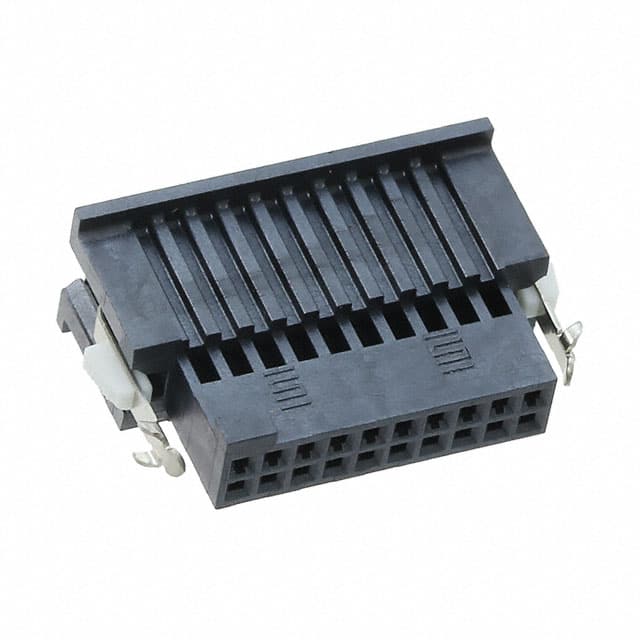

ISDF-10-D-M Samtec ISDF-10-D-M double row insulator housing with 20 positions at 1.27mm pitch. Features latch lock fastening and retention latches.
Mfr Part #:

ISDF-10-D-M

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec ISDF-10-D-M double row insulator housing with 20 positions at 1.27mm pitch. Features latch lock fastening and retention latches.
✓ Total Stock: 90 pcs
$ Price Range: $0.84 - $1.69

ISDF-10-D-M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISDF-10-D-M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Material
Contact Plating
Contact Termination
Contact Type
Current Rating
Fastening Type
Features
Halogen Free
Insulator Material
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Tape & Reel
Termination Style
Voltage Rating
Wire Gauge
View Similar Products (0)

ISDF-10-D-M Description

Short technical summary and product information.

The Samtec ISDF-10-D-M is a double row insulator housing designed for 1.27mm (.050") pitch discrete wire assembly systems. It provides a free hanging (in-line) mounting configuration and uses a reliable latch lock fastening mechanism with integral retention latches for secure mating.



This housing accommodates 20 female socket contacts in a 2-row arrangement with 1.27mm row spacing. The black LCP insulator offers good thermal and mechanical stability. Contacts are terminated via crimp method and are ordered separately. Compatible contact part numbers include Samtec CC03R or CC03M in 28-30 AWG wire gauge.



The housing is rated for 2.9A per pin (2 pins powered) and 280 VAC (PVC) operating voltage. Operating temperature range is -10°C to +80°C for PVC cable assemblies. Supports 28 or 30 AWG wire.

ISDF-10-D-M Quick Information

Product Type: Rectangular Connector Housing
Series: ISDF
Canonical Name: Samtec ISDF-10-D-M Rectangular Connector Housing
Subcategory: Rectangular Connector Housings

ISDF-10-D-M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

ISDF-10-D-M Estimated Pricing

Qty Low High
1+ $1.69 $1.69
50+ $1.39 $1.39
93+ $0.95 $0.95
527+ $0.92 $0.92
5,022+ $0.88 $0.88
10,013+ $0.84 $0.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISDF-10-D-M Features

  • 20 position double row insulator housing.
  • 1.27mm pitch with 2 rows and latch lock.
  • Free hanging in-line mounting with crimp termination.
  • Rated 2.9A per pin and 280 VAC.
  • Black LCP insulator with BeCu gold plated contacts.

ISDF-10-D-M Applications

  • Used in discrete wire cable assemblies.
  • Suitable for internal wiring harnesses.
  • Ideal for signal and low power distribution.

ISDF-10-D-M FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the ISDF-10-D-M housing have?

20 positions arranged in 2 rows.

What is the pitch and row spacing?

Pitch is 1.27mm (0.050") with 1.27mm row spacing.

What is the current rating?

2.9 A per pin with 2 pins powered.

What is the voltage rating?

280 VAC.

What mounting style does this housing use?

Free hanging (in-line) mounting with latch lock fastening and retention latches.

What wire gauge is compatible?

28 to 30 AWG wire.

What contact termination method is used?

Crimp termination for female socket contacts.
