| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel |

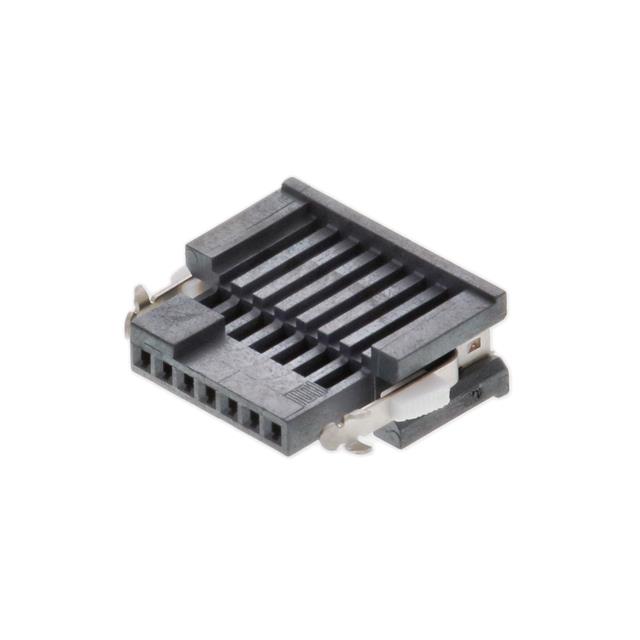

The Samtec ISDF-07-S-M is a rectangular connector housing designed for use with female socket contacts. It accommodates 7 positions in a single row with a 1.27mm (0.050") pitch, making it suitable for compact interconnect applications.
The housing features a latch lock fastening mechanism and retention latches for secure mating. It supports crimp termination and is rated for an operating temperature range of -55°C to 125°C. The insulator is black and designed for free hanging (in-line) mounting.
This housing is part of Samtec's ISDF series and is commonly used in wire-to-board or wire-to-wire connections where space is limited. The 1.27mm pitch allows for high-density interconnects in industrial, automotive, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.86 | $1.86 |
| 39+ | $1.21 | $1.21 |
| 507+ | $1.20 | $1.20 |
| 1,014+ | $1.04 | $1.04 |
| 2,028+ | $1.01 | $1.01 |
| 5,031+ | $1.00 | $1.00 |
| 10,023+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7 positions.
1.27mm (0.050").
Free Hanging (In-Line).
Female Socket contacts.
Latch Lock.
Crimp.
-55°C to 125°C.
