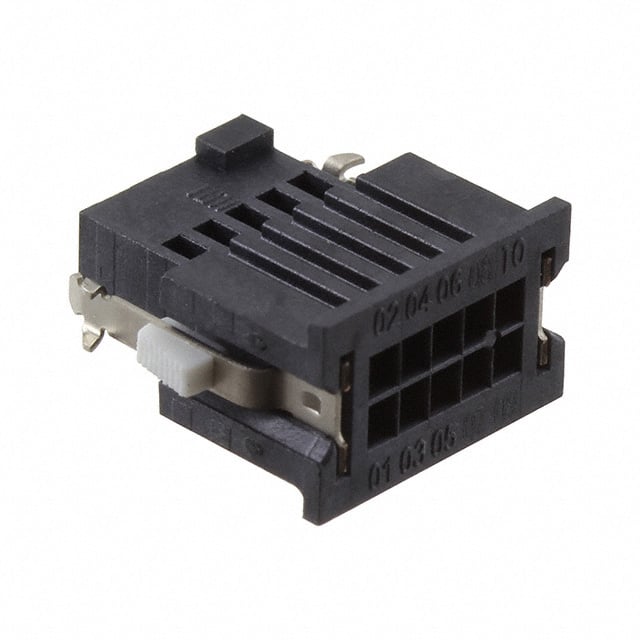

ISDF-05-D-M 10-position, 2-row, 1.27mm pitch female socket connector housing from Samtec. Features free hanging mounting, crimp termination, and latch lock fastening.
Mfr Part #:

ISDF-05-D-M

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
10-position, 2-row, 1.27mm pitch female socket connector housing from Samtec. Features free hanging mounting, crimp termination, and latch lock fastening.
✓ Total Stock: 98 pcs
$ Price Range: $0.74 - $1.73

ISDF-05-D-M Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
98 pcs
On Request
98 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ISDF-05-D-M Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connector Type
Contact Material
Contact Plating
Contact Termination
Contact Type
Current Rating
Fastening Type
Features
Halogen Free
Insulator Material
Lead Spacing
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Tape & Reel
Wire Gauge
View Similar Products (0)

ISDF-05-D-M Description

Short technical summary and product information.

The Samtec ISDF-05-D-M is a 10-position, 2-row rectangular connector housing from the Tiger Eye™ ISDF series. It features a 1.27mm pitch and accepts female socket contacts. The housing is made of black LCP insulator material and is designed for free hanging (in-line) mounting. It includes retention latches for secure mating. Crimp termination is used for contacts. Electrical ratings: 2.9A per pin (2 pins powered), voltage rating up to 313 VAC (Teflon cable variant). Operating temperature range: -55°C to 125°C (housing). Wire gauge: 28-30 AWG. Contact plating: Gold over 50 µ" Nickel. Compliant with RoHS, REACH, and halogen free. Supplied in tube packaging (48 pieces).

ISDF-05-D-M Quick Information

Product Type: Rectangular Connector Housing
Series: ISDF
Canonical Name: Samtec Inc. ISDF-05-D-M Rectangular Connector Housing, 10 Position, 2 Row, 1.27mm Pitch, Female Socket, Crimp, Free Hanging
Subcategory: Rectangular Connector Housing

ISDF-05-D-M Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Moisture Sensitivity Level 1
REACH Status: Compliant

ISDF-05-D-M Estimated Pricing

Qty Low High
1+ $1.73 $1.73
48+ $1.38 $1.38
96+ $0.95 $0.95
528+ $0.87 $0.87
1,008+ $0.84 $0.84
2,016+ $0.79 $0.79
10,032+ $0.74 $0.74

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISDF-05-D-M Features

  • 10-position, 2-row, 1.27mm pitch connector housing.
  • Female socket contacts with crimp termination.
  • Free hanging (in-line) mounting with latch lock.
  • Rated for 2.9A per pin and 280 VAC.
  • Black LCP insulator, RoHS compliant.

ISDF-05-D-M Applications

  • Used in wire-to-board cable assemblies.
  • Suitable for industrial and commercial electronics.
  • Ideal for high-density interconnection applications.
  • Used in systems requiring secure latch locking.

ISDF-05-D-M FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the ISDF-05-D-M have?

10 positions in 2 rows.

What is the pitch of the ISDF-05-D-M?

1.27 mm (0.050 inches).

What is the current rating of the ISDF-05-D-M?

2.9 A per pin with 2 pins powered.

What is the voltage rating?

280 VAC for PVC cable, 313 VAC for Teflon cable.

What is the mounting type?

Free hanging (in-line) mounting.

What is the operating temperature range?

-55°C to 125°C for the housing (LCP insulator).

What is the contact plating?

Gold over 50 µ" (1.27 µm) Nickel.
