Mfr Part #:

ISD2-15-D-M

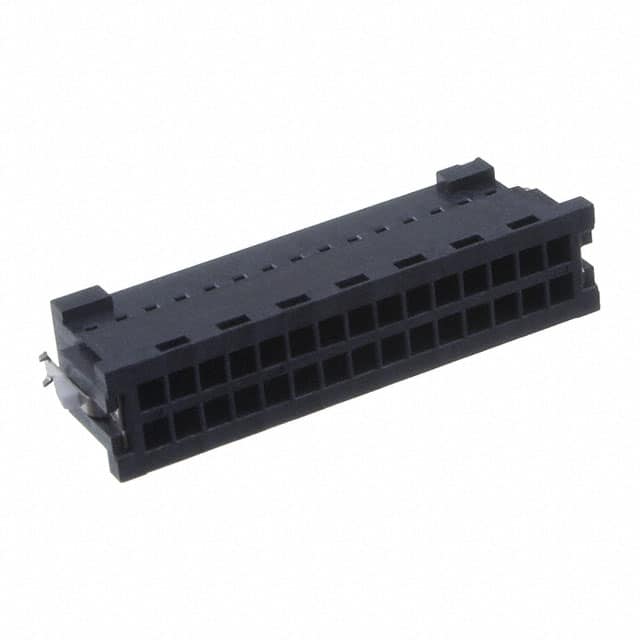

Samtec ISD2-15-D-M is a 30 position, 2 row, 2.00mm pitch female socket housing with latch lock and crimp termination. It is free hanging (in-line) and RoHS3 compliant.

✓ Total Stock: 14 pcs

$ Price Range: $1.11 - $1.86

ISD2-15-D-M Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	14 pcs On Request	14 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ISD2-15-D-M Description

Short technical summary and product information.

The Samtec ISD2-15-D-M is a 30 position, 2 row female socket housing from the Tiger Eye family, designed for wire-to-board and wire-to-wire applications. It features a 2.00mm (0.079 inch) pitch and a latch lock fastening system with retention latches for secure mating. The housing is made of black liquid crystal polymer (LCP) insulator and accepts beryllium copper contacts with gold over nickel plating.

This housing supports crimp termination and is rated for 250 VAC and 3.8 A per pin (2 pins powered, 24 AWG). It operates over a temperature range of -40°C to +125°C with Teflon cable or -10°C to +105°C with PVC cable. The free hanging (in-line) mounting allows flexible integration into cable assemblies.

The ISD2-15-D-M is packaged in tubes of 16 parts. It is RoHS3 compliant, REACH unaffected, halogen free, and has an MSL rating of 1 (unlimited). Note: California Proposition 65 warning applies for nickel content.

This housing mates with Samtec S2SD and S2SDT series cable assemblies and uses CC81L or CC81R contacts. It is suitable for 24 to 30 AWG wire.

ISD2-15-D-M Quick Information

Product Type: Rectangular Connector Housing

Series: ISD2

Canonical Name: Samtec ISD2-15-D-M 30 Position 2.00mm Pitch Female Socket Housing, Latch Lock, Crimp Termination

Subcategory: Crimp Housings

ISD2-15-D-M Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: REACH Unaffected

Lead Free: Yes

ISD2-15-D-M Estimated Pricing

Qty	Low	High
1+	$1.86	$1.86
48+	$1.43	$1.43
112+	$1.35	$1.35
512+	$1.28	$1.28
1,008+	$1.24	$1.24
2,000+	$1.18	$1.18
5,008+	$1.13	$1.13
10,000+	$1.11	$1.11

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISD2-15-D-M Features

30 positions in 2 rows.
2.00mm pitch for compact designs.
Latch lock for secure mating.
Crimp termination for wire assembly.
Gold over nickel contact plating.

ISD2-15-D-M Applications

Wire-to-board connections in electronic devices.
Wire-to-wire cable assemblies.
High-density signal routing applications.
Industrial control and automation systems.

ISD2-15-D-M FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the ISD2-15-D-M have?

30 positions in 2 rows.

What is the pitch of this connector housing?

2.00mm (0.079 inches).

What is the current rating of the ISD2-15-D-M?

3.8 A per pin (2 pins powered, 24 AWG).

What is the voltage rating?

250 VAC.

What mounting type does the ISD2-15-D-M support?

Free hanging (in-line) mounting.

What is the operating temperature range?

-40°C to +125°C for Teflon cable, -10°C to +105°C for PVC cable.

What contact termination does it use?

Crimp termination.

Category	Rectangular Connector Housings
Manufacturer Name	Samtec Inc.
Color	Black
Contact Material	BeCu
Contact Plating	Au over 50 µ" Ni
Contact Termination	Crimp
Contact Type	Female Socket
Current Rating	3.8 A
Fastening Type	Latch Lock
Features	Retention Latches
Halogen Free	Yes
Insulator Material	LCP
Lead Spacing	2.0 mm
Lead Style	Crimp
Mounting Type	Free Hanging (In-Line)
Number of Positions	30
Number of Rows	2
Pitch	2.00mm (0.079")
Row Spacing	2.00mm (0.079")
SVHC Present	Not Present
Tape & Reel	No
Voltage Rating	250 VAC
