Mfr Part #:

ISD2-10-D-M

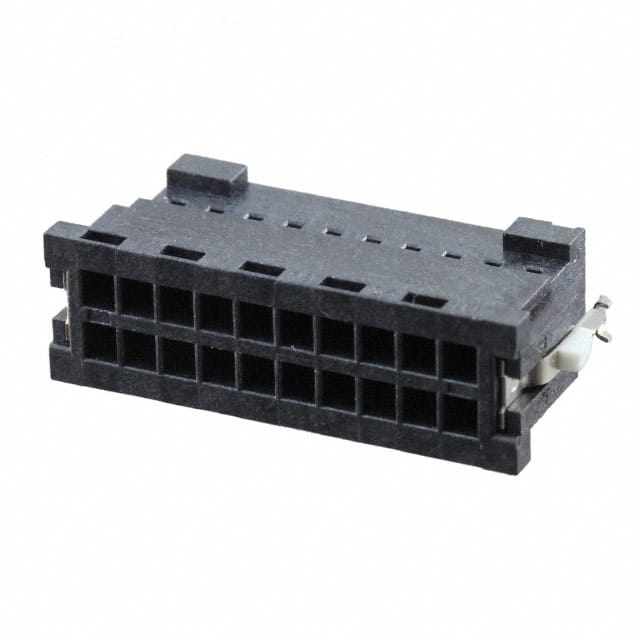

Samtec ISD2-10-D-M is a 20 position (2 rows) 2.00mm pitch female socket housing with metal retention latch, designed for wire-to-board or wire-to-wire applications. Features crimp termination and accepts 24-30 AWG wire.

✓ Total Stock: 109 pcs

$ Price Range: $0.99 - $1.98

ISD2-10-D-M Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	100 pcs On Request	100 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Speed Components Ltd ✓ Non-Authorised Inventory information	9 pcs On Request	9 pcs	On Request	1	On Request	On Request	10+	On Request	On Request

ISD2-10-D-M Description

Short technical summary and product information.

The Samtec ISD2-10-D-M is a 20-position, double-row female socket housing from the Tiger Eye™ ISD2 series. It features a 2.00mm (0.079") pitch and a metal retention latch for secure mating. The housing is designed for free hanging (in-line) mounting and accepts crimp contacts for 24 to 30 AWG wire.

The insulator is molded from black LCP (Liquid Crystal Polymer), and the contacts are beryllium copper with gold plating over 50 µ" nickel. The housing includes retention latches to ensure reliable connection. It is rated for 3.8 A per pin (with 2 pins powered) and 250 VAC, with an operating temperature range of -10°C to +105°C for PVC cable or -40°C to +125°C for Teflon cable.

This housing mates with Samtec S2SD and S2SDT series cable assemblies and is suitable for wire-to-board or wire-to-wire applications. It is packaged in tubes of 22 pieces. The part is RoHS3 compliant, REACH unaffected, halogen free, and not moisture sensitive (MSL 1).

ISD2-10-D-M Quick Information

Product Type: Rectangular Connector Housing

Series: ISD2

Canonical Name: Samtec ISD2 Series 20 Position 2.00mm Pitch Double Row Female Socket Housing with Metal Retention Latch

Subcategory: Wire-to-Board / Wire-to-Wire Housing

ISD2-10-D-M Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): Not Moisture Sensitive

REACH Status: No SVHCs

ISD2-10-D-M Estimated Pricing

Qty	Low	High
1+	$1.98	$1.98
44+	$1.43	$1.43
110+	$1.27	$1.27
506+	$1.09	$1.09
1,012+	$1.02	$1.02
2,002+	$0.99	$0.99
5,016+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

ISD2-10-D-M Features

20 positions in double row 2.00mm pitch.
Metal retention latch for secure connection.
Accepts 24 to 30 AWG wire with crimp termination.
Rated for 3.8 A per pin and 250 VAC.
RoHS3 compliant and halogen free.

ISD2-10-D-M Applications

Wire-to-board and wire-to-wire cable assemblies.
Industrial control and automation systems.
Data communication and networking equipment.
Consumer electronics requiring compact connectors.

ISD2-10-D-M FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the ISD2-10-D-M have?

20 positions in a double row configuration.

What is the pitch of the ISD2-10-D-M?

2.00mm (0.079")

What is the current rating of the ISD2-10-D-M?

3.8 A per pin (with 2 pins powered)

What is the voltage rating?

250 VAC

What is the mounting type?

Free Hanging (In-Line)

What wire gauge does the ISD2-10-D-M accept?

24 to 30 AWG

What is the operating temperature range?

-10°C to +105°C (PVC) or -40°C to +125°C (Teflon)

Category	Rectangular Connector Housings
Manufacturer Name	Samtec Inc.
Color	Black
Contact Material	BeCu
Contact Plating	Au over 50 µ" (1.27 µm) Ni
Contact Termination	Crimp
Contact Type	Female Socket
Current Rating	3.8 A per pin (2 pins powered)
Fastening Type	Latch Lock
Features	Retention Latches
Halogen Free	Yes
Industrial Grade	Yes
Insulator Material	Black LCP
Lead Style	Crimp
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Operating Temperature Range	-10°C to +105°C (PVC); -40°C to +125°C (Teflon)
Pitch	2.00mm (0.079")
Row Spacing	0.079" (2.00mm)
Tape & Reel	No
Voltage Rating	250 VAC
