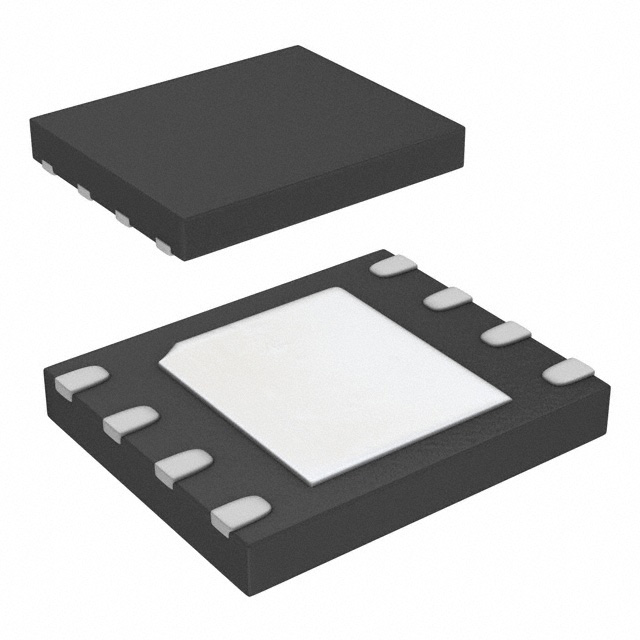

IS25LP128-JLLE
Integrated Silicon Solution
The IS25LP128-JLLE is a 128Mbit NOR Flash memory device from Integrated Silicon Solution. It supports SPI, Quad I/O, and QPI interfaces with a clock frequency up to 133MHz.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,980 pcs
|
7980 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Frequency | |
| Halogen Free | |
| Memory Format | |
| Memory Interface | |
| Memory Organization | |
| Memory Size | |
| Memory Type | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Technology | |
| Voltage | |
| Write Cycle Time |
The IS25LP128-JLLE-TR is a 128Mbit (16Mbyte) serial flash memory device from Integrated Silicon Solution, Inc. (ISSI). It supports industry-standard SPI, Dual I/O, Quad I/O, and QPI interfaces, with a maximum clock frequency of 133MHz, enabling high data throughput.
This NOR flash memory operates from a single 2.3V to 3.6V power supply and is available in an 8-WSON (8x6mm) package suitable for surface mounting. It offers robust performance with over 100,000 erase/program cycles and more than 20 years of data retention. The device is designed for low power consumption, featuring active read currents of 5mA and standby currents as low as 10µA.
Key features include flexible memory architecture with uniform sector/block erase, program suspend and resume capabilities, and advanced security features such as hardware and software write protection. The operating temperature range is -40°C to 105°C (TA), making it suitable for various industrial applications. The memory organization is 16M x 8.
This flash memory is compliant with RoHS3 standards and is halogen-free. It is supplied in an 8-WDFN exposed pad package, designed for surface mount applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IS25LP128-JLLE-TR has a memory size of 128Mbit.
It supports SPI, Dual I/O, Quad I/O, and QPI interfaces.
The operating voltage range is 2.3V to 3.6V.
The operating temperature range is -40°C to 105°C (TA).
It is supplied in an 8-WDFN Exposed Pad package.
The maximum clock frequency is 133 MHz.
The data retention period is more than 20 years.
