| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Marking | |
| Actuator Type | |
| Circuit | |
| Color | |
| Current Rating (Amps) | |
| Features | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Torque | |
| Type | |
| Voltage Rating |

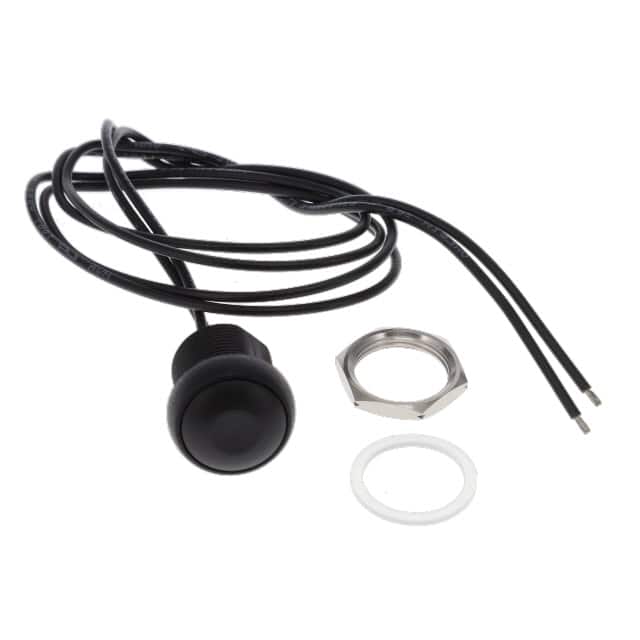

The APEM Inc. IRR3F422 is a pushbutton switch designed for panel mounting. It features a standard, round button actuator with tactile feedback and a black color.
Electrically, this switch operates with a SPST-NO (Single Pole Single Throw - Normally Open) circuit, handling a current rating of 200mA at 250V. The initial contact resistance is a maximum of 100 mΩ, with an insulation resistance of 1 GΩ min. at 500 VDC.
Environmental specifications include front panel sealing to IP67, indicating dust-tight and waterproof capabilities. The operating temperature range is -20 °C to +85 °C. Mechanical specifications include a panel thickness capacity of up to 3 mm, a total travel of 1.6 mm, and a mechanical life of 1,000,000 cycles.
Termination is via flying leads for easy installation. This microswitch technology offers a robust solution for various applications requiring reliable switching.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IRR3F422 pushbutton switch has an operating voltage rating of 250 V.
The IRR3F422 pushbutton switch has a current rating of 200mA (AC/DC).
The operating temperature range for the IRR3F422 pushbutton switch is -20 °C to +85 °C.
The IRR3F422 pushbutton switch has an ingress protection rating of IP67, meaning it is dust-tight and waterproof.
The IRR3F422 pushbutton switch has a SPST-NO (Single Pole Single Throw - Normally Open) circuit.
The IRR3F422 pushbutton switch is designed for panel mounting.
The IRR3F422 pushbutton switch has a mechanical life of 1,000,000 cycles.
