IR2110SPBF
Vishay

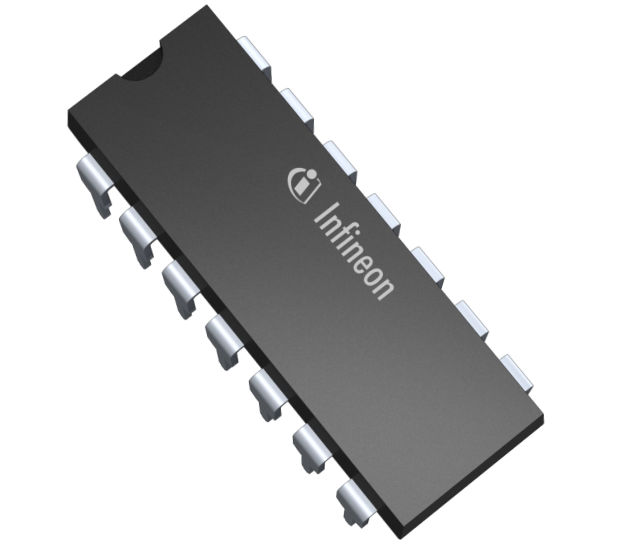

The Infineon Technologies IR2110SPBF is a high voltage, high speed gate driver IC. It features independent high and low side referenced output channels.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | 06+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Output Current |
The IR2110 is a high voltage, high speed power MOSFET and IGBT driver IC manufactured by Infineon Technologies. It provides independent high and low side referenced output channels, enabling robust monolithic construction through proprietary HVIC and latch immune CMOS technologies.
This gate driver operates with a floating channel fully operational to +500V, making it suitable for high-side configurations. It supports a gate drive supply range from 10 to 20V and is compatible with 3.3V logic inputs. Key electrical specifications include an output current capability of ±2A / ±2A and matched propagation delays of 10 ns maximum for both channels, with typical turn-on and turn-off delays of 120 ns and 94 ns, respectively.
The IR2110 is designed for applications requiring efficient power switching. Its features include undervoltage lockout for both channels, tolerance to negative transient voltage, and dV/dt immunity. The device is available in a 14-Lead PDIP through-hole package, suitable for various industrial and power electronics designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IR2110 has a maximum high-side output voltage of 500V.
10 to 20V.
3.3 to 20V, and it is compatible with 3.3V logic.
14-Lead PDIP (through-hole).
Turn-on delay is 120 ns typical and turn-off delay is 94 ns typical.
±2A peak output current.
10 ns maximum.
