| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Output Current | |
| Output Voltage | |
| Tape & Reel |

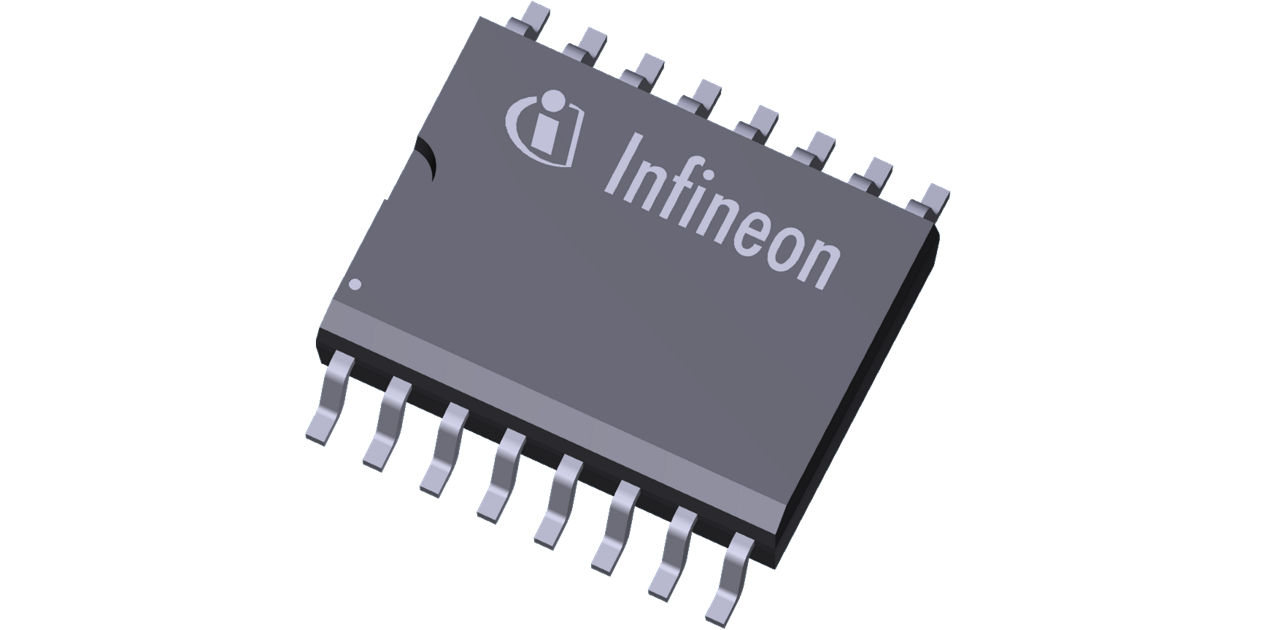

The Infineon Technologies IR2110SPBF is a high voltage, high speed power MOSFET and IGBT driver. It offers independent high and low side referenced output channels, enabling robust monolithic construction through proprietary HVIC and latch immune CMOS technologies.
Key electrical specifications include a high voltage capability of up to 500V, a gate drive supply range of 10 to 20V, and a separate logic supply range from 3.3V to 20V. The device provides ±2A of output current and features matched propagation delays of 10ns maximum, with typical turn-on and turn-off times of 120ns and 94ns respectively.
Logic inputs are compatible with standard CMOS or LSTTL outputs down to 3.3V logic. The output drivers are designed with a high pulse current buffer stage to minimize driver cross-conduction. Propagation delays are matched for high-frequency applications.
This gate driver is available in a 14-Lead PDIP through-hole package, suitable for various power electronics applications requiring reliable high and low side driving.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.07 | $6.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IR2110SPBF is fully operational to 500V.
The gate drive supply range is from 10 to 20V.
The separate logic supply range is from 3.3V to 20V.
The output current is ±2A for both high and low side channels.
The IR2110SPBF is available in a 14-Lead PDIP package.
