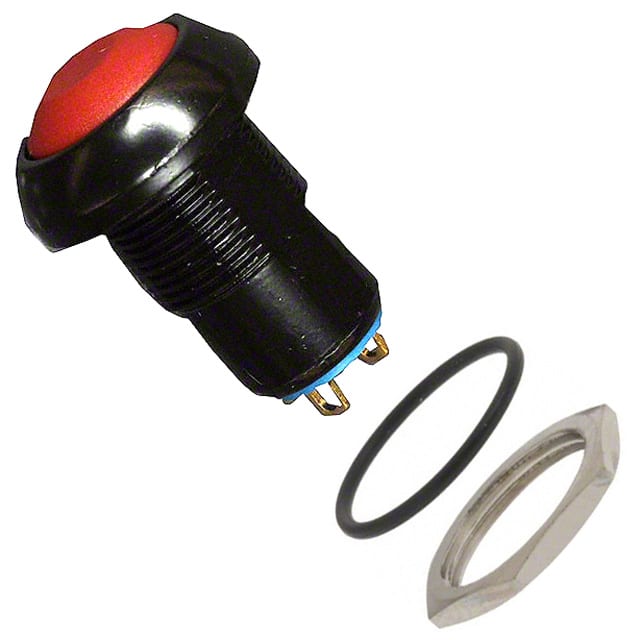

IPR1SAD6 The APEM Inc. IPR1SAD6 is a latching pushbutton switch featuring a standard type, SPST circuit, and a red round button actuator. It offers IP67 front panel sealing and epoxy sealed terminals.
Mfr Part #:

IPR1SAD6

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
The APEM Inc. IPR1SAD6 is a latching pushbutton switch featuring a standard type, SPST circuit, and a red round button actuator. It offers IP67 front panel sealing and epoxy sealed terminals.
✓ Total Stock: 98 pcs
$ Price Range: $0.75

IPR1SAD6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
98 pcs
On Request
98 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IPR1SAD6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Color
Actuator Marking
Actuator Type
Circuit
Color
Current Rating (Amps)
Features
Ingress Protection
Insulation Resistance
Lead Style
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Panel Thickness
Storage Temperature
Switch Function
Tape & Reel
Termination Style
Torque
Type
Voltage Rating
View Similar Products (0)

IPR1SAD6 Description

Short technical summary and product information.

The APEM Inc. IPR1SAD6 is a latching pushbutton switch designed for panel mounting. It features a standard type with a round, red button actuator and no marking. The switch has an SPST circuit and a 'Off-On' function.



Key electrical specifications include a voltage rating of 125V and current ratings of 4A DC and 2A AC. The contacts are made of silver with gold plating. The switch offers a mechanical life of 1,000,000 cycles.



Environmental specifications include IP67 front panel sealing and IP69K rating with a cap. It has a shock resistance of 100g and vibration resistance of 10g. The operating temperature range is -40°C to +85°C. The panel thickness it accommodates is between 1.5 mm and 4 mm, with a panel cutout diameter of 13.60mm.



This switch is suitable for applications requiring a durable and sealed pushbutton interface. Its robust construction and environmental resistance make it a reliable choice for various industrial and commercial uses.

IPR1SAD6 Quick Information

Product Type: Pushbutton Switch
Series: IPR1
Canonical Name: APEM Inc. IPR1SAD6 Latching Pushbutton Switch
Subcategory: Latching Pushbutton Switch

IPR1SAD6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IPR1SAD6 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPR1SAD6 Features

  • Latching pushbutton switch with SPST circuit.
  • Rated for 4A DC and 2A AC at 125V.
  • Sealed to IP67 and IP69K standards.
  • Durable silver contacts with gold plating.
  • Designed for panel mount applications.

IPR1SAD6 Applications

  • Ideal for industrial control panels.
  • Suitable for harsh environment applications.
  • Used in equipment requiring reliable switching.
  • Applications needing sealed pushbutton interfaces.

IPR1SAD6 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the APEM IPR1SAD6 pushbutton switch?

The operating voltage for the APEM IPR1SAD6 pushbutton switch is 125 V.

What is the operating temperature range of the IPR1SAD6 switch?

The operating temperature range for the IPR1SAD6 switch is -40°C to +85°C.

What is the ingress protection rating of the APEM IPR1SAD6?

The APEM IPR1SAD6 has an ingress protection rating of IP67 according to IEC 60529, and IP69K according to DIN 40050-9 when used with a cap.

What are the current and voltage ratings for the IPR1SAD6 switch?

The IPR1SAD6 switch has a maximum current/voltage rating of 5A at 28VDC with gold-plated silver contacts, 0.2A at 48VDC, and 0.5A at 48VAC.

What is the mechanical life of the APEM IPR1SAD6 pushbutton switch?

The mechanical life of the APEM IPR1SAD6 pushbutton switch is 1,000,000 cycles at low level.

What type of actuator does the APEM IPR1SAD6 switch have?

The APEM IPR1SAD6 switch features a round button actuator.
