Mfr Part #:

IPD1-10-D

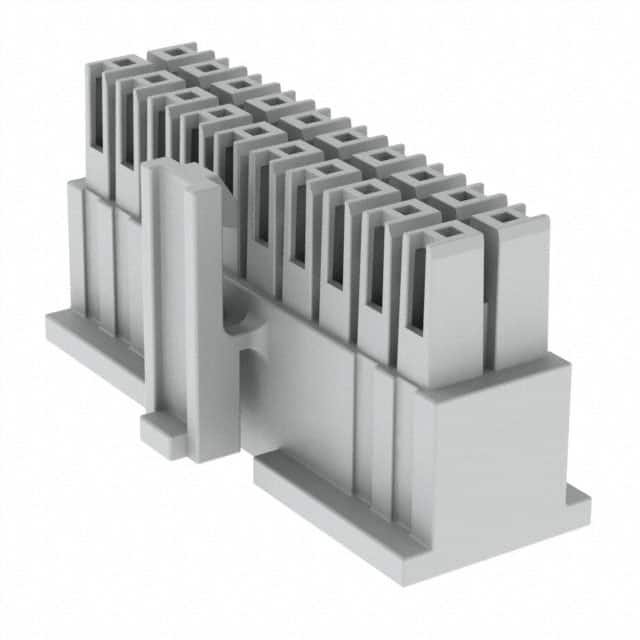

Samtec IPD1-10-D is a 20-position rectangular connector housing with 2.54mm pitch, featuring female socket contacts and crimp termination. It is designed for free hanging (in-line) mounting with latch lock fastening.

✓ Total Stock: 527 pcs

$ Price Range: $0.24 - $0.54

IPD1-10-D Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
ADI/AAR OEM Supply ✓ Non-Authorised Inventory information	527 pcs On Request	527 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

IPD1-10-D Description

Short technical summary and product information.

The Samtec IPD1-10-D is a 20-position rectangular connector housing from the IPD1 series. It features a receptacle configuration with female socket contacts arranged in 2 rows at a 2.54mm (0.100") pitch and row spacing. The housing accepts crimp termination contacts and is designed for free hanging (in-line) mounting with a latch lock fastening mechanism for secure mating.

The insulator is made of white nylon with a UL 94 V0 flammability rating for the double row configuration. Contact material is beryllium copper with nickel plating. The housing is supplied in tube packaging. Note that nylon is hygroscopic and dimensions are specified dry as molded.

This connector housing is suitable for discrete wire-to-wire applications and cable harness assemblies where a reliable, polarized connection is required. The latch lock ensures retention in vibration-prone environments.

IPD1-10-D Quick Information

Product Type: Rectangular Connector Housing

Series: IPD1

Canonical Name: Samtec IPD1-10-D 20 Position Rectangular Connector Housing

Subcategory: Receptacle Housing

IPD1-10-D Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

IPD1-10-D Estimated Pricing

Qty	Low	High
1+	$0.54	$0.54
50+	$0.47	$0.47
100+	$0.43	$0.43
500+	$0.39	$0.39
1,000+	$0.35	$0.35
2,000+	$0.29	$0.29
6,000+	$0.27	$0.27
10,000+	$0.24	$0.24
26,000+	$0.24	$0.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

IPD1-10-D Features

20-position, 2-row receptacle housing.
2.54mm pitch and row spacing.
Crimp termination for female socket contacts.
Free hanging (in-line) mounting with latch lock.
White nylon insulator, UL 94 V0 rated.

IPD1-10-D Applications

Used for wire-to-wire interconnections.
Suitable for cable harness assemblies.
Common in industrial and commercial electronics.

IPD1-10-D FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the IPD1-10-D have?

20 positions arranged in 2 rows.

What is the pitch of the IPD1-10-D?

2.54mm (0.100") pitch and row spacing.

What mounting type does the IPD1-10-D use?

Free hanging (in-line) mounting with latch lock fastening.

What contact termination does the IPD1-10-D support?

Crimp termination for female socket contacts.

What is the insulator material and flammability rating?

White nylon insulator with UL 94 V0 rating (for double row configuration).

What is the contact material?

Beryllium copper with nickel plating.

What packaging is available?

Supplied in tubes.

Category	Rectangular Connector Housings
Manufacturer Name	Samtec Inc.
Color	White
Connector Type	Receptacle
Contact Material	Beryllium Copper
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulator Material	Nylon
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Operating Temperature Range	Hyderoscopic, up to 0.5% expansion
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
SVHC Present	Not Present
Tape & Reel	No
