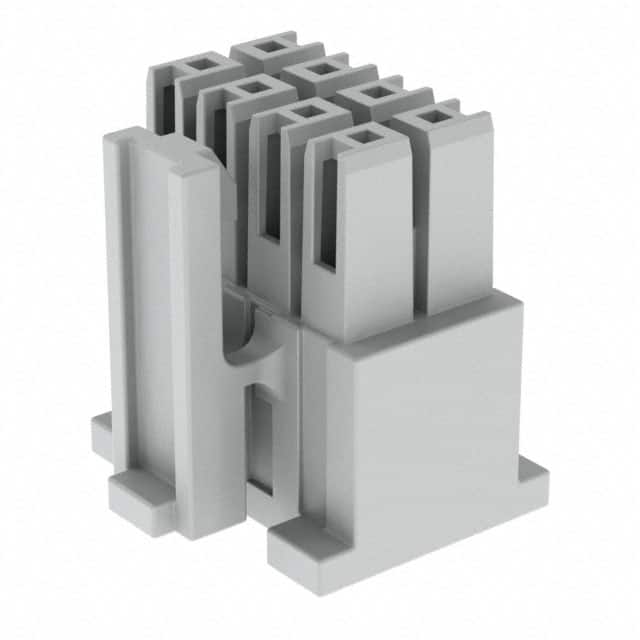

The Samtec IPD1-04-D is a rectangular connector housing from the IPD1 series. It is designed as a receptacle housing accommodating 8 female socket contacts arranged in 2 rows with a pitch and row spacing of 2.54mm (0.100").
The housing features a latch lock fastening mechanism for secure mating and uses a latch constructed from nickel-plated beryllium copper with a retention force of 4.45 N. The insulator material for this double row configuration is nylon rated UL 94 V0.
This connector housing supports crimp termination and is intended for free hanging (in-line) mounting applications. The housing is white in color. It is typically packaged in tubes for positions 7-25 while positions 2-6 use layer pack packaging.
Ideal for applications requiring a reliable and polarized discrete wire interconnection system, this housing is compatible with standard 2.54mm pitch crimp contacts sold separately.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.62 | $0.62 |
| 50+ | $0.54 | $0.54 |
| 100+ | $0.47 | $0.47 |
| 500+ | $0.40 | $0.40 |
| 1,000+ | $0.35 | $0.35 |
| 2,000+ | $0.32 | $0.32 |
| 5,000+ | $0.32 | $0.32 |
| 10,000+ | $0.30 | $0.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The IPD1-04-D has 8 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
It accepts female socket contacts with crimp termination.
The housing is designed for free hanging (in-line) mounting.
It uses a latch lock fastening mechanism with a metal latch made of nickel-plated beryllium copper.
The double row insulator is made of nylon with a UL 94 V0 flammability rating.
The housing is white.
