| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
136 pcs
|
136 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulator Material | |
| Latch Material | |
| Latch Retention Force | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| SVHC Present | |
| Tape & Reel |

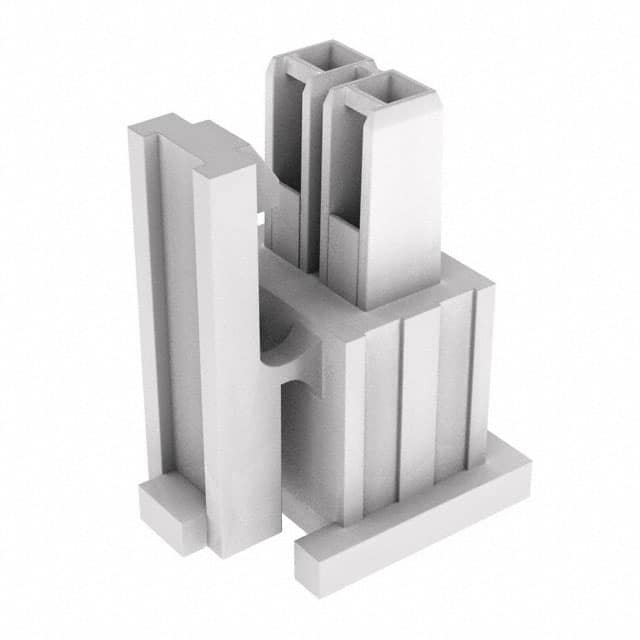

The Samtec IPD1-02-S-K is a 2-position, single row receptacle housing from the Mini Mate IPD1 series. It features a 2.54mm (0.100") pitch and is designed for free hanging (in-line) mounting. The housing accepts female socket contacts with crimp termination, making it suitable for discrete wire cable assemblies.
The insulator is made of nylon with UL 94 V2 flammability rating, and the latch is constructed from nickel-plated beryllium copper with a minimum retention force of 4.45 N. The part includes a polarizing key for correct mating orientation. The housing is white in color.
This connector housing is typically used in wire-to-board or wire-to-wire applications requiring a compact, reliable connection. It is packaged in bulk with 8000 parts per package. Compliance information includes RoHS3, REACH unaffected, and MSL Level 1, though these are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.60 | $0.60 |
| 50+ | $0.51 | $0.51 |
| 100+ | $0.46 | $0.46 |
| 500+ | $0.38 | $0.38 |
| 1,000+ | $0.33 | $0.33 |
| 2,000+ | $0.29 | $0.29 |
| 5,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
2.54mm (0.100").
Free Hanging (In-Line).
Female socket contacts with crimp termination.
Latch lock with a minimum retention force of 4.45 N.
Nylon with UL 94 V2 rating.
White.
