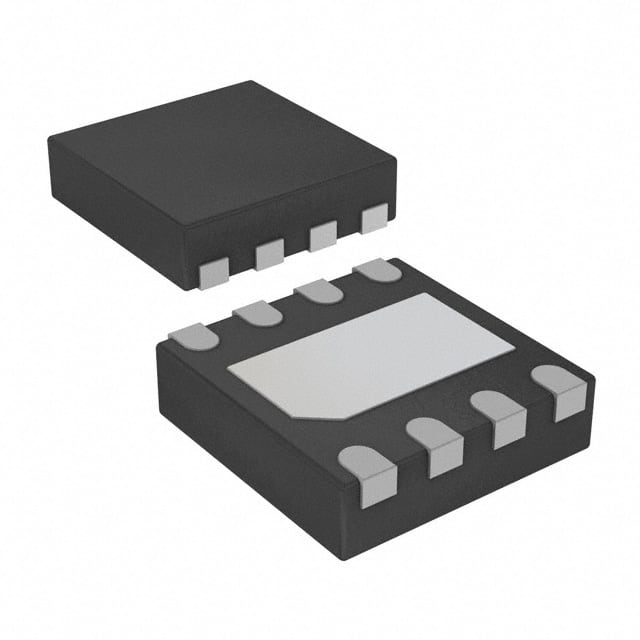

IP4254CZ8-4-TTL,13 The IP4254CZ8-4-TTL,13 is a 4-channel RC (Pi) low pass filter array with integrated ESD protection, offering 100Ω series resistance and 30pF channel capacitance.
Mfr Part #:

IP4254CZ8-4-TTL,13

Available from 2 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The IP4254CZ8-4-TTL,13 is a 4-channel RC (Pi) low pass filter array with integrated ESD protection, offering 100Ω series resistance and 30pF channel capacitance.
✓ Total Stock: 75,518 pcs
$ Price Range: $0.25

IP4254CZ8-4-TTL,13 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
58,498 pcs
On Request
58498 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
17,020 pcs
On Request
17020 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IP4254CZ8-4-TTL,13 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
ESD Protection
Filter Order
Halogen Free
Height
Length
Mounting Type
Number of Channels
Operating Temperature
Resistance
Storage Temperature
Tape & Reel
Technology
Type
Values
Width
View Similar Products (0)

IP4254CZ8-4-TTL,13 Description

Short technical summary and product information.

The IP4254CZ8-4-TTL,13 is a 4-channel integrated RC low pass filter array from Nexperia. It uses a 2nd-order Pi (RC) topology to attenuate unwanted RF signals from 800 MHz to 3 GHz by 28 dB. Each channel features a typical series resistance of 100 Ω and a channel capacitance of 30 pF. The device also includes diodes for ESD protection up to ±30 kV contact discharge per IEC61000-4-2, safeguarding downstream components.



This filter is designed for EMI/RFI filtering in portable communication and computing devices. Typical applications include cellular handsets, cordless telephones, wireless LAN/WAN systems, mobile internet devices, and portable media players. The monolithic silicon construction integrates resistors and diodes in a compact 8-UFDFN exposed pad package measuring 1.70 mm x 1.35 mm x 0.55 mm.



The IP4254CZ8-4-TTL,13 is surface mountable and operates over a temperature range of -40°C to 85°C. It is RoHS3 compliant and free of halogens and antimony as per the datasheet. The 0.4 mm pitch QFN package enables space-efficient PCB layouts for high-density designs.

IP4254CZ8-4-TTL,13 Quick Information

Product Type: EMI/RFI Filter (RC Network)
Series: IP4254
Canonical Name: IP4254CZ8-4-TTL,13 - 4-Channel RC Low Pass Filter with ESD Protection
Subcategory: EMI/RFI Filters

IP4254CZ8-4-TTL,13 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

IP4254CZ8-4-TTL,13 Estimated Pricing

Qty Low High
1+ $0.25 $0.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

IP4254CZ8-4-TTL,13 Features

  • 4-channel RC Pi low pass filter array.
  • 100Ω series resistance per channel.
  • 30pF channel capacitance.
  • 28dB attenuation from 800MHz to 3GHz.
  • ±30kV ESD protection per IEC61000-4-2.

IP4254CZ8-4-TTL,13 Applications

  • EMI/RFI filtering in mobile handsets.
  • ESD protection for I/O ports.
  • Used in wireless LAN/WAN systems.
  • Suitable for portable media players.

IP4254CZ8-4-TTL,13 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of the IP4254CZ8-4-TTL,13?

8-UFDFN Exposed Pad surface mount package.

What is the operating temperature range?

-40°C to 85°C.

Is the IP4254CZ8-4-TTL,13 RoHS compliant?

Yes, RoHS3 compliant per datasheet.

What is the ESD protection rating?

±30 kV contact discharge per IEC61000-4-2.

What is the attenuation of this filter?

28 dB from 800 MHz to 3 GHz.

How many filter channels does it have?

4 channels.

What filter technology is used?

RC (Pi) low pass, 2nd order.
