Mfr Part #:

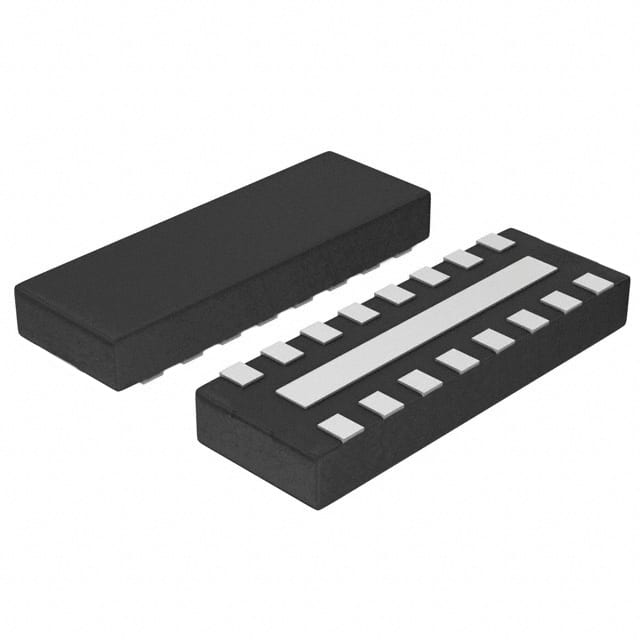

IP3253CZ16-8-TTL,1

Name: IP3253CZ16-8-TTL,1
Brand: Nexperia USA Inc.
SKU: IP3253CZ16-8-TTL,1

Mfr Name: Nexperia USA Inc.

Description:

FILTER LC(PI) 18NH/25PF ESD SMD

Stock on Request

IP3253CZ16-8-TTL,1 Description

Short technical summary and product information.

FILTER LC(PI) 18NH/25PF ESD SMD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

NXP Semiconductors

CONSUMER CIRCUIT

Category	EMIRFI Filters (LC, RC Networks)
Manufacturer Name	Nexperia USA Inc.
Applications	GSM, LAN, PCS, WAN
Attenuation Value	30dB @ 1GHz ~ 4GHz
Center	175MHz (Cutoff)
Current	30 mA
ESD Protection	Yes
Filter Order	3rd
Height	0.022" (0.55mm)
Mounting Type	Surface Mount
Number of Channels	8
Operating Temperature	-40°C ~ 85°C
Resistance	8
Size	0.130" L x 0.053" W (3.30mm x 1.35mm)
Technology	LC (Pi)
Type	Low Pass
Values	L = 18nH (Total), C = 25pF (Total)
