Mfr Part #:

IP3088CX15,135

Name: IP3088CX15,135
Brand: Nexperia USA Inc.
SKU: IP3088CX15,135

Mfr Name: Nexperia USA Inc.

Description:

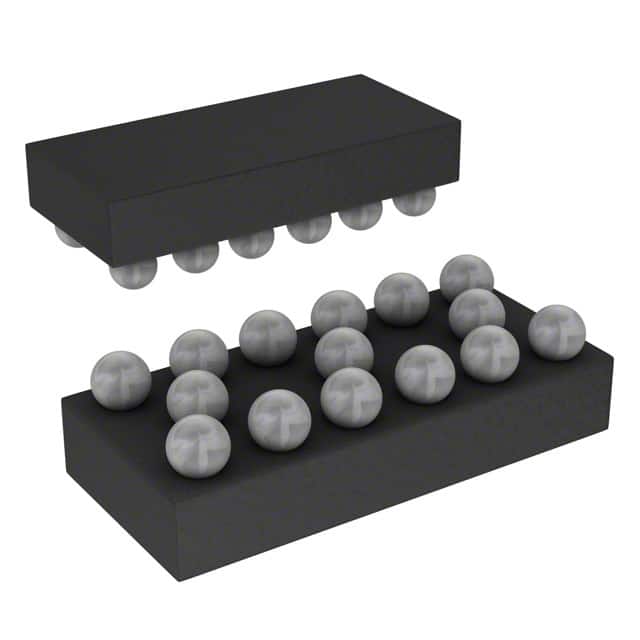

FILTER LC(PI) 40NH/42PF ESD SMD

Stock on Request

IP3088CX15,135 Description

Short technical summary and product information.

FILTER LC(PI) 40NH/42PF ESD SMD

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

IP3088CX15,135

NXP Semiconductors

IP3088CX15 - CONSUMER CIRCUIT

Category	EMIRFI Filters (LC, RC Networks)
Manufacturer Name	Nexperia USA Inc.
Applications	GSM, LAN, PCS, WAN
Attenuation Value	40dB @ 800MHz ~ 1.5GHz
Center	175MHz (Cutoff)
Current	30 mA
ESD Protection	Yes
Filter Order	5th
Height	0.028" (0.70mm)
Mounting Type	Surface Mount
Number of Channels	6
Operating Temperature	-40°C ~ 85°C
Resistance	18
Size	0.117" L x 0.050" W (2.96mm x 1.28mm)
Technology	LC (Pi)
Type	Low Pass
Values	L = 40nH (Total), C = 42pF (Total)
