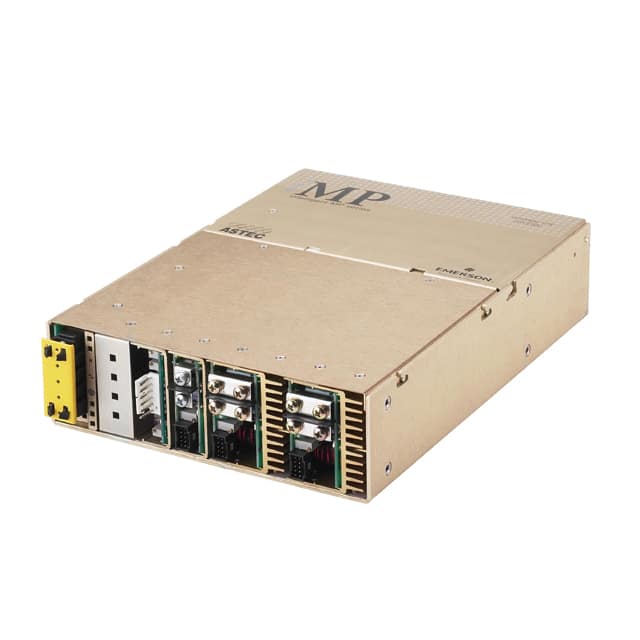

The Artesyn Embedded Power IMP1-3R0-1Q0-1Q0-1R0-01 is an enclosed AC/DC converter designed for ITE (Commercial) and Medical applications. It delivers up to 1500W of power with four distinct output voltages: 28V, 24V, 25V, and 28V, each with corresponding current ratings.
This converter operates with an efficiency of 85% and accepts a wide input voltage range of 85-264 VAC or 120-300 VDC. Key features include an I²C interface, PMBus™ support, PFC, and Remote Sense capabilities, along with a universal input.
The unit is chassis mountable and measures 279.4mm x 203.2mm x 63.5mm. It is designed for operation in temperatures ranging from -40°C to 70°C with derating. Approvals include CB, CE, CSA, and UL.
Universal input 85~264 VAC or 120~300 VDC.
Four outputs: 28V (26.8A), 24V (8.5A), 25V (8.5A), and 28V (6.7A).
1500W.
-40°C to 70°C (with derating).
Enclosed (enclosed) and chassis mount.
Yes, it supports PMBus and I²C interfaces.
