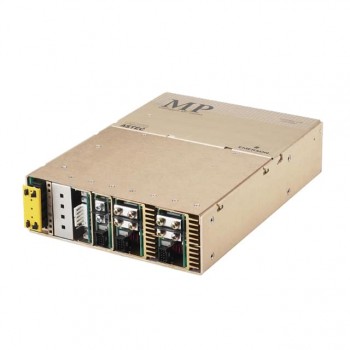

The IMP1-3N0-3N0-00 from Artesyn Embedded Power is a high-power AC DC converter, delivering up to 1500W. This enclosed unit features dual 15V outputs, each capable of supplying up to 50A. It operates with an efficiency of 85% and accepts a wide input voltage range of 85-264 VAC or 120-300 VDC.
Designed for demanding applications, the IMP1-3N0-3N0-00 is suitable for ITE (Commercial) and Medical environments. Key features include adjustable output, I²C interface, PFC, PMBus™, and remote sense capabilities, providing flexibility and control in system integration. The converter offers 2kV of isolation voltage.
This power supply is chassis mounted and has dimensions of 11.00" L x 8.00" W x 2.50" H (279.4mm x 203.2mm x 63.5mm). It operates within a temperature range of -40°C to 70°C with derating. Approval agencies include CB, CE, CSA, and UL, ensuring compliance with various international standards.
The input voltage range is 85~264 VAC or 120~300 VDC.
Dual 15V outputs, each up to 50A, total 1500W.
-40°C to 70°C with derating.
Chassis mount, dimensions 279.4mm x 203.2mm x 63.5mm (11.00" x 8.00" x 2.50").
I²C interface and PMBus.
CB, CE, CSA, UL.
85%.
