| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
67 pcs
|
67 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Tape & Reel |

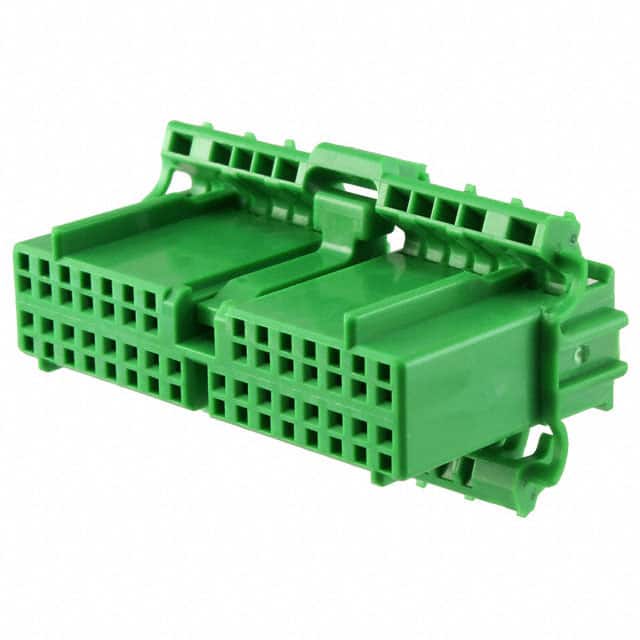

The IL-AG5-30S-D3C1 is a rectangular connector housing from JAE Electronics, part of the IL-AG5 series. It is a receptacle type housing with 30 positions arranged in 2 rows. The pitch is 2.50mm (0.098") and the row spacing is 3.00mm (0.118"). The housing uses crimp termination and is designed for free hanging (in-line) mounting. The housing color is green. It accepts female socket contacts (sold separately). The operating temperature range is -40°C to 85°C. Compliance information lists RoHS3 compliant, REACH unaffected, and MSL 1 (unlimited). This housing is suitable for wire-to-wire connections in various applications requiring a compact, reliable interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.91 | $1.91 |
| 10+ | $1.63 | $1.63 |
| 25+ | $1.41 | $1.41 |
| 100+ | $1.34 | $1.34 |
| 300+ | $1.23 | $1.23 |
| 600+ | $1.15 | $1.15 |
| 1,200+ | $1.07 | $1.07 |
| 2,700+ | $1.02 | $1.02 |
| 5,100+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 30 positions.
The pitch is 2.50mm (0.098").
It is designed for free hanging (in-line) mounting.
It has 2 rows.
The row spacing is 3.00mm (0.118").
It accepts female socket contacts.
The operating temperature range is -40°C to 85°C.
