| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,299 pcs
|
5299 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Tape & Reel |

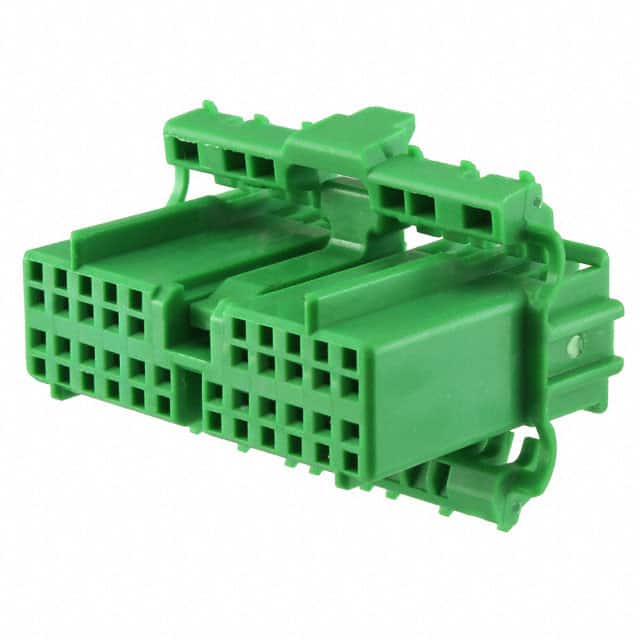

The IL-AG5-22S-D3C1 is a 22-position rectangular connector housing from JAE Electronics, part of the IL-AG5 series. This receptacle housing accepts female socket contacts and is designed for free hanging (in-line) mounting. The housing has two rows with a 2.50mm pitch and 3.00mm row spacing.
The operating temperature range of -40°C to 85°C makes it suitable for a wide variety of environments. Crimp termination allows for reliable wire connections. The green housing is polarized to prevent mismating.
Typical applications include wire-to-wire connections in automotive, industrial, and consumer electronics. The housing is RoHS3 compliant and has an MSL rating of Level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.98 | $1.98 |
| 10+ | $1.69 | $1.69 |
| 25+ | $1.51 | $1.51 |
| 100+ | $1.43 | $1.43 |
| 250+ | $1.30 | $1.30 |
| 400+ | $1.23 | $1.23 |
| 1,200+ | $1.19 | $1.19 |
| 2,800+ | $1.12 | $1.12 |
| 5,200+ | $1.11 | $1.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 positions arranged in 2 rows.
2.50mm pitch with 3.00mm row spacing.
Free hanging (in-line) mounting.
-40°C to 85°C.
