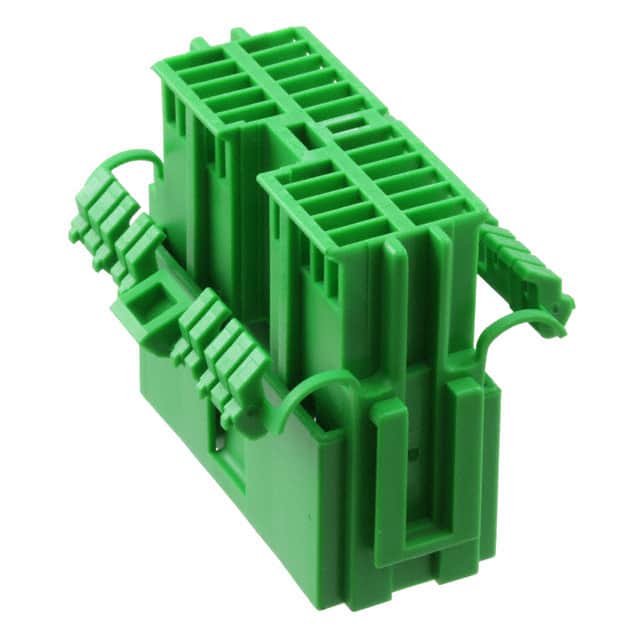

The IL-AG5-22P-D3C1 is a plug housing designed for rectangular connector systems, part of JAE Electronics' IL-AG5 series. It accommodates 22 male pin contacts arranged in 2 rows with a 2.50mm pitch and 3.00mm row spacing. The housing is green in color and features a free hanging (in-line) mounting style, making it suitable for cable-to-cable or cable-to-board connections where a secure, removable connection is required.
Termination is achieved via crimp contacts, allowing for reliable wire attachment without soldering. The housing is rated for an operating temperature range of -40°C to 85°C, suitable for a variety of environments. As a housing only, it requires separate contacts (sold separately) to complete the connector assembly.
The IL-AG5 series is known for its compact design and reliable performance in automotive and industrial applications. This 22-position variant offers a balance of size and connection density, ideal for wire harnesses and control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.48 | $2.48 |
| 10+ | $2.11 | $2.11 |
| 25+ | $1.89 | $1.89 |
| 100+ | $1.80 | $1.80 |
| 250+ | $1.69 | $1.69 |
| 500+ | $1.56 | $1.56 |
| 750+ | $1.52 | $1.52 |
| 3,000+ | $1.39 | $1.39 |
| 5,250+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 positions.
2.50mm.
Free Hanging (In-Line).
2 rows.
Male Pin contacts.
Crimp.
-40°C to 85°C.
