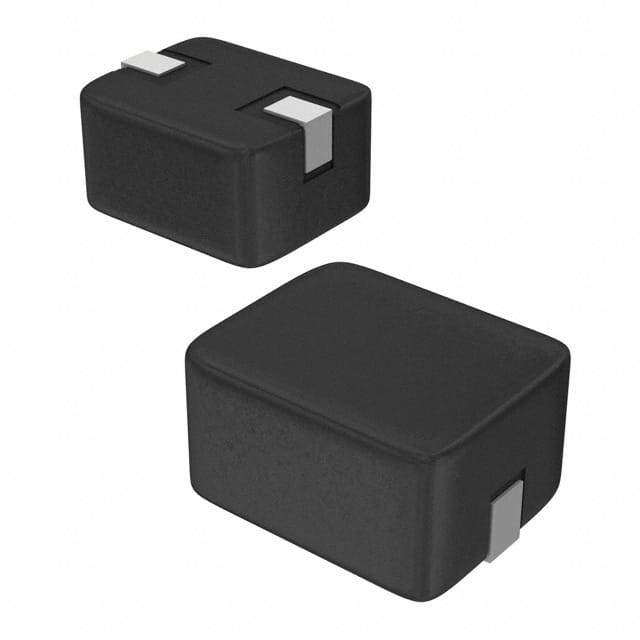

This Vishay Dale IHLP-1212BZ-11 series shielded molded inductor features an inductance of 1.5 µH at 100 kHz, 0.25 V, 0 A with ±20% tolerance. The maximum DC resistance is 32 mOhm at 25 °C. The heat rating current is 3.8 A (DC current that will cause approximately 40 °C temperature rise). The saturation current is 4.0 A (DC current that will cause inductance to drop approximately 20%). The self-resonant frequency is 70 MHz typical. The rated operating voltage across the inductor is 40 V.
The inductor is fully shielded with a molded construction, offering ultra low buzz noise due to composite construction. It is designed for surface mount on a nonstandard package with dimensions 3.65 mm x 3.00 mm x 2.00 mm. Operating temperature range is -55 °C to +125 °C. The product is RoHS3 compliant, with MSL 1 (unlimited) and REACH unaffected.
Typical applications include high current POL converters, low profile high current power supplies, battery powered devices, DC/DC converters in distributed power systems, and filter inductor applications up to SRF. The IHLP design handles high transient current spikes without saturation and offers the lowest DCR/µH in this package size.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.05 | $1.05 |
| 3,000+ | $0.53 | $0.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1.5 µH at 100 kHz, 0.25 V, 0 A, with a tolerance of ±20%.
The heat rating current is 3.8 A (DC current causing approximately 40°C temperature rise). The saturation current is 4.0 A (DC current causing inductance to drop approximately 20%).
The maximum DC resistance is 32 mOhm at 25°C.
The typical self-resonant frequency is 70 MHz.
The package is Nonstandard SMD with dimensions 3.65 mm x 3.00 mm x 2.00 mm. Mounting type is surface mount.
The operating temperature range is -55°C to +125°C.
Yes, it has shielded construction.
