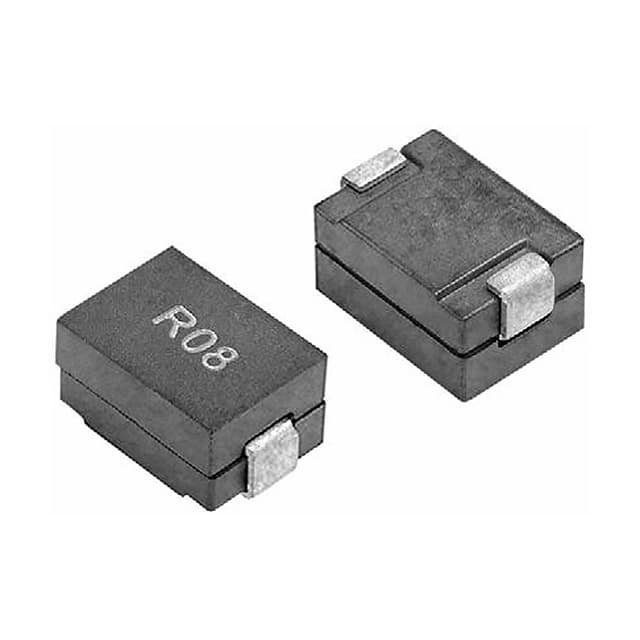

IFLR4027EZER85NM01 85 nH Shielded Surface Mount Power Inductor, 50 A DC, 0.42 mOhm Max DCR, ±20% tolerance.
Mfr Part #:

IFLR4027EZER85NM01

Available from 1 distributors
Mfr Name: Vishay
Vishay
85 nH Shielded Surface Mount Power Inductor, 50 A DC, 0.42 mOhm Max DCR, ±20% tolerance.
✓ Total Stock: 20 pcs
$ Price Range: $0.44

IFLR4027EZER85NM01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

IFLR4027EZER85NM01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Height
Inductance
Lead Style
Length
Mounting Type
Operating Temperature
Shielding
Storage Temperature
Tape & Reel
Tolerance
Width
View Similar Products (0)

IFLR4027EZER85NM01 Description

Short technical summary and product information.

The Vishay Dale IFLR4027EZER85NM01 is a low profile, shielded power inductor designed for high current applications. It features an inductance of 85 nH at 100 kHz with ±20% tolerance. The inductor is rated for a continuous current of 50 A (heat rating current typical) and a saturation current of 70 A typical. Maximum DC resistance is 0.42 mOhm.



Operating temperature range is -40°C to +125°C. The component is surface mounted in a 2-SMD J-Lead package measuring 7.00 mm x 10.20 mm x 5.00 mm. The shielded construction minimizes electromagnetic interference.



Typical applications include notebook, desktop, and server power supplies, high current point-of-load (POL) converters, low profile high current power supplies, and DC/DC converters in distributed power systems.

IFLR4027EZER85NM01 Quick Information

Product Type: Fixed Inductor
Series: IFLR-4027EZ-01
Canonical Name: Vishay Dale IFLR4027EZER85NM01 Low Profile, High Current Inductor
Subcategory: Power Inductor

IFLR4027EZER85NM01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

IFLR4027EZER85NM01 Estimated Pricing

Qty Low High
5,000+ $0.44 $0.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

IFLR4027EZER85NM01 Features

  • Shielded construction for reduced EMI.
  • Low profile 5.00 mm height.
  • High current rating of 50 A.
  • Low DCR of 0.42 mOhm max.
  • Wide operating temperature range -40 to 125°C.

IFLR4027EZER85NM01 Applications

  • Ideal for high current POL converters.
  • Used in notebook and desktop power supplies.
  • Suitable for DC/DC converter designs.
  • Low profile for space-constrained applications.

IFLR4027EZER85NM01 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value?

85 nH at 100 kHz, 1 V, 0 A.

What is the tolerance?

±20%.

What is the current rating?

50 A (heat rating current typical).

What is the saturation current?

70 A typical (L0 drop ~20%).

What is the DC resistance (DCR)?

0.42 mOhm max.

What is the operating temperature range?

-40°C to 125°C.

What is the package type?

2-SMD, J-Lead (surface mount).
