| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,898 pcs
|
6898 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

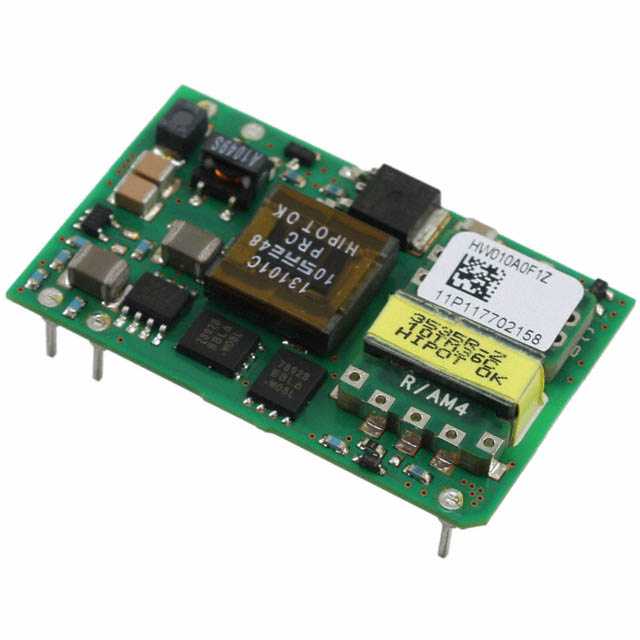

The ABB Power Electronics HW010A0F1 is an isolated DC-DC converter module designed for commercial ITE applications. It operates over a wide input voltage range of 36 to 75 Vdc and provides a single tightly regulated 3.3V output at up to 10A, delivering 33W of output power.
Key electrical features include remote on/off control (active low enable), overcurrent protection (OCP), overvoltage protection (OVP), overtemperature protection (OTP), and undervoltage lockout (UVLO). Typical efficiency is 90%, helping to minimize power loss in distributed power architectures.
The converter is housed in a compact 18-DIP through-hole module measuring 47.2mm x 29.5mm x 8.6mm (1.86" x 1.16" x 0.34"). It operates over a wide temperature range of -40°C to 85°C, making it suitable for demanding environments.
This module is ideal for powering FPGAs, DSPs, ASICs, and other digital ICs in wireless networks, optical networking equipment, and enterprise networking systems.
The output voltage is 3.3V and the output current is 10A, providing 33W of output power.
The input voltage range is 36V to 75V DC.
The operating temperature range is -40°C to 85°C.
It uses an 18-DIP Module with 6 leads and through-hole mounting.
RoHS compliance is listed as RoHS3 Compliant but is unverified for this specific part number. The datasheet indicates that non-Z versions may lose RoHS compliance after June 2016.
