| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,140 pcs
|
1140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Configuration | |
| Forward Voltage | |
| Height | |
| Industrial Grade | |
| Lead Style | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Viewing Angle |

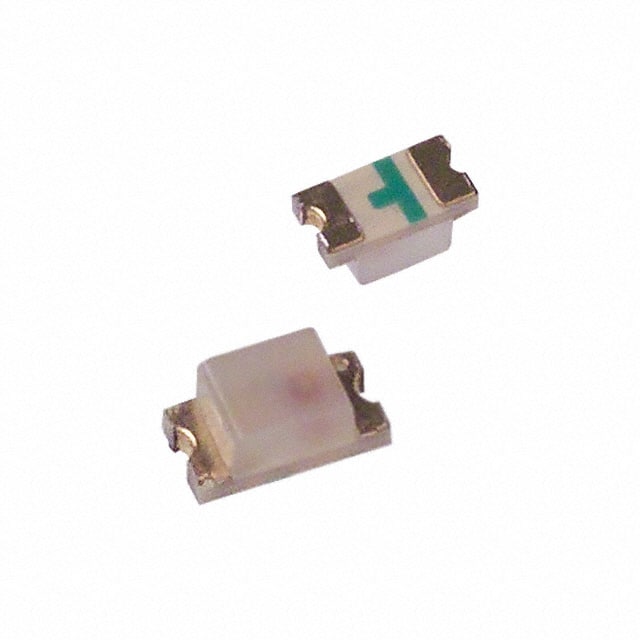

The HSMH-C191 from Avago Technologies (Broadcom) is a discrete red LED designed for indication purposes. It features a diffused lens for wide light distribution and a compact 0603 (1608 Metric) surface-mount package.
This LED operates with a typical forward voltage of 1.8V and a test current of 20mA, producing a luminous intensity of 17mcd. Its peak emission wavelength is 660nm, with a dominant wavelength of 639nm. The wide viewing angle of 170° ensures broad illumination coverage.
The dimensions of the LED chip are 1.60mm in length and 0.80mm in width, with a maximum height of 0.60mm. The lens itself measures 1.00mm by 0.80mm. The component is supplied in tape and reel packaging, suitable for automated surface mount assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The dominant wavelength is 639nm.
The typical forward voltage is 1.8V at 20mA.
The typical luminous intensity is 17mcd at 20mA.
The viewing angle is 170°.
The package is 0603 (1608 Metric) with dimensions 1.60mm L x 0.80mm W and a maximum height of 0.60mm.
The lens is a white diffused rectangle with a flat top.
The mounting type is surface mount.
