| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120 pcs
|
120 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Material Flammability Rating | |
| Maximum Operating Temperature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Rated Voltage (DC) | |
| SVHC Present | |
| Shell Finish | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

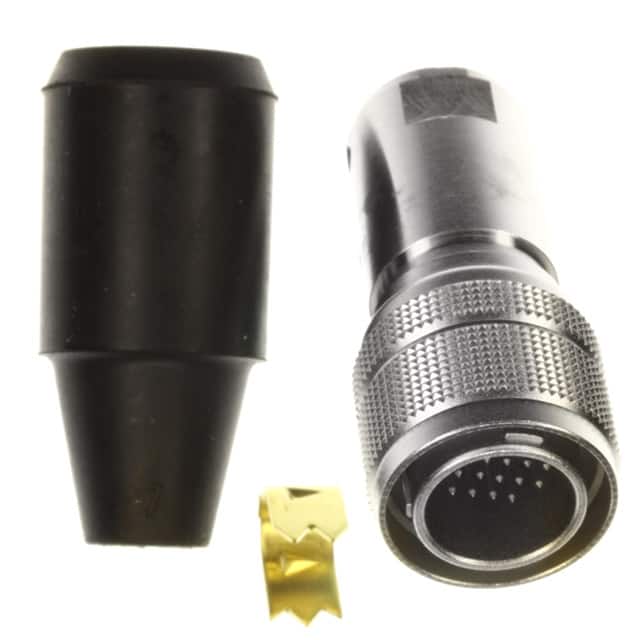

The Hirose HR10A-13P-20P(73) is a circular connector plug from the HR10 series, designed for compact and reliable interconnections. It features a push-pull coupling mechanism for quick and easy mating, and a five-key polarization system ensures correct alignment during connection. The connector has 20 male pin contacts with silver plating, housed in a nickel-plated zinc alloy shell. Termination is via solder cups, and the assembly includes a backshell, clamp, and strain relief for cable management. It is rated for a current of 2A and a voltage of 100VAC or 140VDC, with an operating temperature range of -25°C to 85°C. The insulator material has a UL94 V-0 flammability rating. This connector is suitable for use in various electronic equipment requiring a space-saving, high-density interconnect solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $57.31 | $57.31 |
| 10+ | $48.71 | $48.71 |
| 20+ | $45.08 | $45.08 |
| 50+ | $44.54 | $44.54 |
| 100+ | $44.29 | $44.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 20 positions.
The current rating is 2A.
The voltage rating is 100VAC and 140VDC.
It uses free hanging (in-line) mounting.
The operating temperature range is -25°C to 85°C.
The shell is made of zinc alloy with a nickel finish.
The fastening type is push-pull.
