HM2P07PDG1A1N9LF
Amphenol ICC

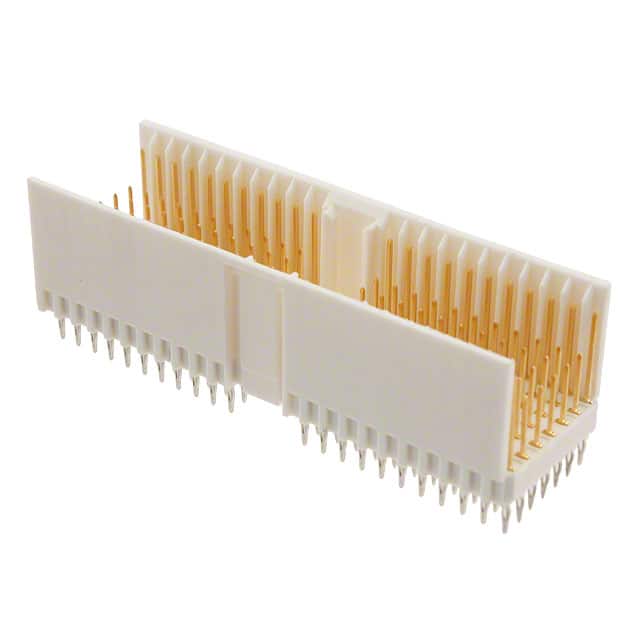

Amphenol ICC HM2P07PDG1A1N9LF is a hard metric header with 154 positions (110 signal + 44 ground), 2.00mm pitch, through hole press-fit termination, and gold flash contact finish.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination |
The Amphenol ICC HM2P07PD5111N9LF is a hard metric backplane connector header designed for high-density signal and ground connections in electronic systems. It features a 154-position configuration composed of 110 signal positions plus 44 ground positions arranged in a 5 + 2 row layout, with all positions loaded.
This connector uses a 2.00mm pitch and is offered in a connector style A 22. The header interfaces with male pin contacts and is terminated using a press-fit mounting technique suitable for through-hole PCBs. Contact surfaces are plated with gold flash finish to ensure reliable electrical performance and corrosion resistance.
The press-fit termination eliminates the need for soldering, simplifying assembly and reducing manufacturing time. Hard metric connectors are standardized according to IEC 61076-4-101 and are commonly used in telecommunications, data communications, and industrial backplane applications requiring robust, high-density interconnections.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.41 | $4.41 |
| 10+ | $3.75 | $3.75 |
| 25+ | $3.41 | $3.41 |
| 100+ | $3.25 | $3.25 |
| 288+ | $3.01 | $3.01 |
| 576+ | $2.87 | $2.87 |
| 1,152+ | $2.73 | $2.73 |
| 2,592+ | $2.58 | $2.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 154 positions total, consisting of 110 signal positions and 44 ground positions.
The pitch is 2.00mm (0.079 inches).
The connector is designed for through-hole mounting with press-fit termination.
The contacts have a gold flash finish.
It is listed as RoHS3 compliant, though this is unverified.
MSL is rated as 1 (unlimited), unverified.
