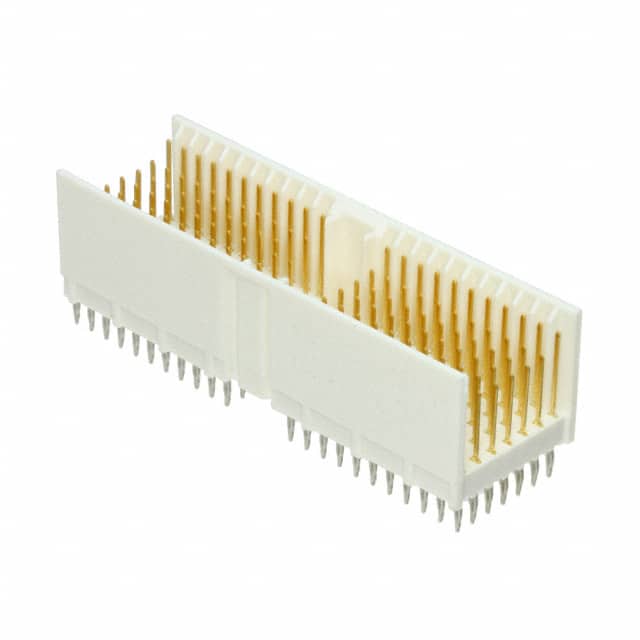

HM2P07PDG1A1N9LF Amphenol ICC HM2P07PDG1A1N9LF is a hard metric header with 154 positions (110 signal + 44 ground), 2.00mm pitch, through hole press-fit termination, and gold flash contact finish.
