| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Material | |
| Contact Resistance | |
| Contact Termination | |
| Contact Type | |
| Current Rating | |
| Durability | |
| Features | |
| Industrial Grade | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating | |
| Withstanding Voltage |

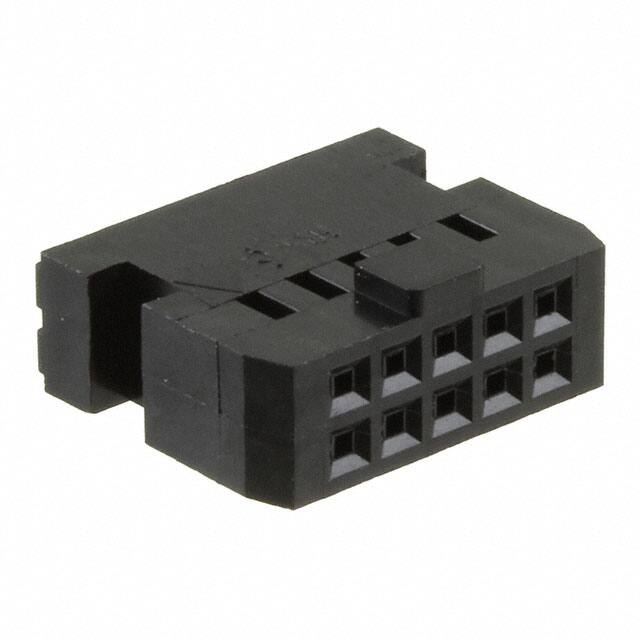

The HIF3BA-10D-2.54C is a rectangular connector housing from Hirose Electric's HIF3B series, designed for use with 28 AWG IDC ribbon cable. This receptacle housing has 10 positions arranged in 2 rows with a 2.54mm pitch and row spacing. It features a polarizing key to prevent mis-insertion and is rated for operating temperatures from -55°C to 85°C.
Electrical specifications include a current rating of 1A (IDC with 28 AWG), a voltage rating of 200V, insulation resistance of 1000MΩ minimum at 500V DC, and contact resistance of 15mΩ maximum. The housing is made of PBT insulator material with a UL94 V-0 flammability rating and is UL approved and compliant with MIL standards.
The connector uses crimp termination and is designed for free hanging (in-line) mounting. Socket contacts are beryllium copper with gold plating. The HIF3BA-10D-2.54C is suitable for applications requiring reliable, MIL-standard compliant ribbon cable interconnections.
10 positions arranged in 2 rows.
2.54mm (0.100") pitch with 2.54mm row spacing.
1A maximum for IDC with 28 AWG wire.
200V maximum.
Free hanging (in-line) mounting.
-55°C to 85°C.
UL94 V-0.
