Mfr Part #:

HF115F

Mfr Name: HF

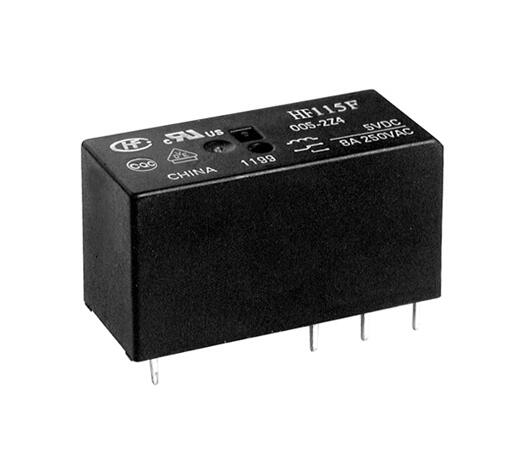

The HONGFA HF115F is a miniature high power relay with a low profile and robust switching capabilities. It offers 16A switching and 5kV dielectric strength.

✓ Total Stock: 94 pcs

$ Price Range: $1.77

HF115F Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
ACK ELEKTRONIK ✓ Non-Authorised Inventory information	94 pcs On Request	94 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

HF115F Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	HF
Height	15.7mm

View Similar Products (0)

HF115F Description

Short technical summary and product information.

The HONGFA HF115F is a miniature high power relay designed for demanding applications. It features a low height of 15.7 mm, making it suitable for space-constrained designs.

This relay boasts a significant 16A switching capability and a high dielectric strength of 5kV between the coil and contacts, ensuring reliable operation under stress. The creepage distance is 10mm, contributing to its safety and performance.

Compliance with standards such as VDE 0700 and 0631 reinforce insulation is noted, and the product is available in accordance with IEC 60335-1. The HF115F is offered in plastic sealed and flux-proofed types, with sockets also available for ease of integration.

Available in tray (50 pcs/tray) and tube (20 pcs/tube) packaging, this relay is suitable for automated assembly processes. Its robust construction and specifications make it a reliable choice for industrial control, home appliances, and new energy sectors.

HF115F Quick Information

Product Type: Power Relay

Canonical Name: Miniature High Power Relay

Subcategory: Power Relay

HF115F Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

HF115F Estimated Pricing

Qty	Low	High
1+	$1.77	$1.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

HF115F Features

16A switching capability for high power loads.
5kV dielectric strength ensures electrical isolation.
Low profile at 15.7mm height.
10mm creepage distance for safety.
Available in sealed and flux-proofed types.

HF115F Applications

Suitable for industrial control systems.
Used in home appliance designs.
Applicable in new energy solutions.
Ideal for power distribution components.

HF115F FAQs

5 frequently asked questions generated from this part’s specifications.

What is the switching capability of the HF115F relay?

The HF115F relay has a switching capability of 16A.

What is the dielectric strength of the HF115F relay between coil and contacts?

The dielectric strength between the coil and contacts is 5kV.

What is the creepage distance for the HF115F relay?

The creepage distance for the HF115F relay is 10mm.

What is the height of the HF115F miniature relay?

The HF115F relay has a low height of 15.7mm.

How is the HF115F relay packaged?

The HF115F relay is available in tray packaging with 50 pcs/tray and tube packaging with 20 pcs/tube.

HF115F Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.

View All Alternate Parts

FTR-K1CK012W

Fujitsu Semiconductor

This Fujitsu FTR-K1CK012W is a PCB mount power relay with a 12V dc coil and a 16A switching current capacity. It features a Single Pole Double Throw (SPDT) contact configuration.

View Part

HF33F/005-ZS3

Hongfa

The HF33F/005-ZS3 is a power relay manufactured by HF (Xiamen Hongfa Electroacoustic). It features a 5V coil voltage and a 10A maximum switching current.
