| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Coil Voltage | |
| Contact Material | |
| Contact Resistance | |
| Failure Rate | |
| Height | |
| Length | |
| Terminal Type | |
| Width |

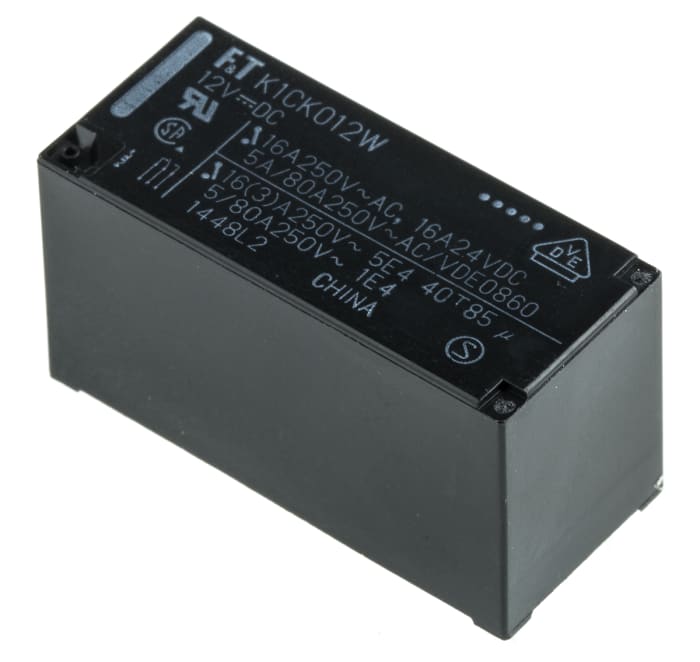

The Fujitsu FTR-K1CK012W is a PCB power relay designed for reliable switching applications. It operates with a 12V dc coil voltage and can handle a switching current of up to 16A. The relay features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit control.
Key electrical specifications include a maximum switching power of 384W, with a switching voltage rating of 300V dc and 300V ac. The coil resistance is 360Ω, and the coil power consumption is 400mW. The contacts are made of a silver alloy, offering a contact resistance of 100mΩ.
Mechanically, this relay is designed for PCB mounting with PCB pin terminals. It has dimensions of 15.7mm in height, 29mm in length, and 12.7mm in width. The operating temperature range is from -40°C to 85°C.
This component is approved to VDE, UL, and CSA standards, indicating its suitability for various industrial and commercial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.77 | $1.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 12V dc.
The maximum switching current is 16A.
It has a Single Pole Double Throw (SPDT) contact configuration.
The switching AC voltage is 300V ac and the switching DC voltage is 300V dc.
The operating temperature range is from -40°C to 85°C.
It is approved to VDE, UL, and CSA standards.
