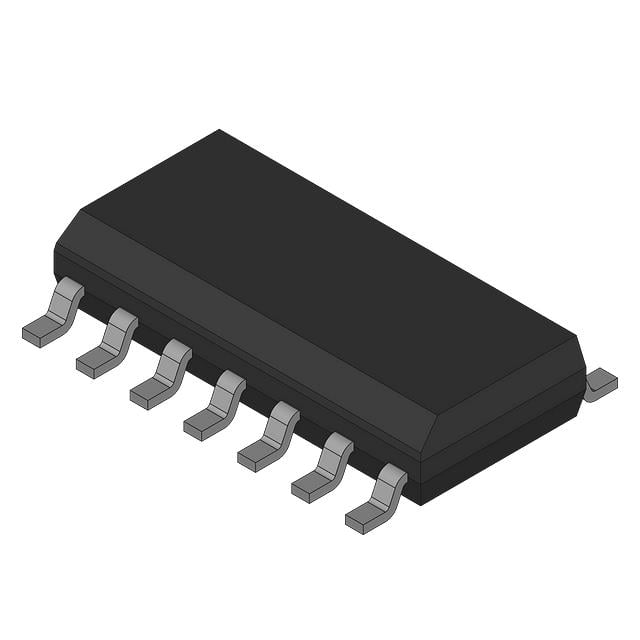

HEF4093BT The Nexperia HEF4093BT is a quad 2-input NAND Schmitt trigger logic gate. It features a wide operating voltage range and operates from -40°C to 125°C.
Mfr Part #:

HEF4093BT

Available from 2 distributors
Mfr Name: Nexperia USA Inc.
Nexperia USA Inc.
The Nexperia HEF4093BT is a quad 2-input NAND Schmitt trigger logic gate. It features a wide operating voltage range and operates from -40°C to 125°C.
✓ Total Stock: 381 pcs
$ Price Range: $0.22

HEF4093BT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
181 pcs
On Request
181 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HEF4093BT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Features
Lead Spacing
Lead Style
Logic Type
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Operating Voltage
SVHC Present
Storage Temperature
View Similar Products (0)

HEF4093BT Description

Short technical summary and product information.

The HEF4093BT from Nexperia is a quad 2-input NAND Schmitt trigger integrated circuit. This logic gate is designed for applications requiring high noise immunity and reliable switching characteristics.



Key electrical specifications include a wide supply voltage range from 3V to 15V, and a maximum propagation delay of 60ns at 15V with a 50pF load. The quiescent current is a maximum of 1µA, making it suitable for low-power applications. Output drive capability is 3.4mA for both high and low states.



This IC features Schmitt trigger inputs, which provide improved noise immunity and sharper signal transitions, ensuring reliable operation even in noisy environments. The operating temperature range is -40°C to 125°C, suitable for various industrial applications.



The HEF4093BT is supplied in a 14-SOIC surface-mount package. Its robust design and wide operating parameters make it a versatile component for digital logic circuits, signal conditioning, pulse generation, and debouncing switches.

HEF4093BT Quick Information

Product Type: Logic Gate
Series: 4000B
Canonical Name: HEF4093BT Quad 2-Input NAND Schmitt Trigger IC
Subcategory: NAND Gate

HEF4093BT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

HEF4093BT Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

HEF4093BT Features

  • Quad 2-input NAND Schmitt trigger logic gate.
  • Wide operating voltage range from 3V to 15V.
  • Schmitt trigger inputs for improved noise immunity.
  • Operates across a wide temperature range of -40°C to 125°C.
  • Surface mountable 14-SOIC package.

HEF4093BT Applications

  • Used for signal conditioning in digital systems.
  • Suitable for pulse generation and timing circuits.
  • Effective for debouncing switches.
  • Applicable in oscillators and frequency dividers.
  • Provides noise reduction in communication systems.

HEF4093BT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the HEF4093BT?

3V to 15V.

What package does the HEF4093BT come in?

14-SOIC (0.154", 3.90mm Width).

What is the operating temperature range?

-40°C to 125°C.

How many NAND gates are in the HEF4093BT?

Four (quad).

Does the HEF4093BT have Schmitt trigger inputs?

Yes.

What is the maximum propagation delay?

60ns at 15V, 50pF.

What is the quiescent current consumption?

1µA maximum.
