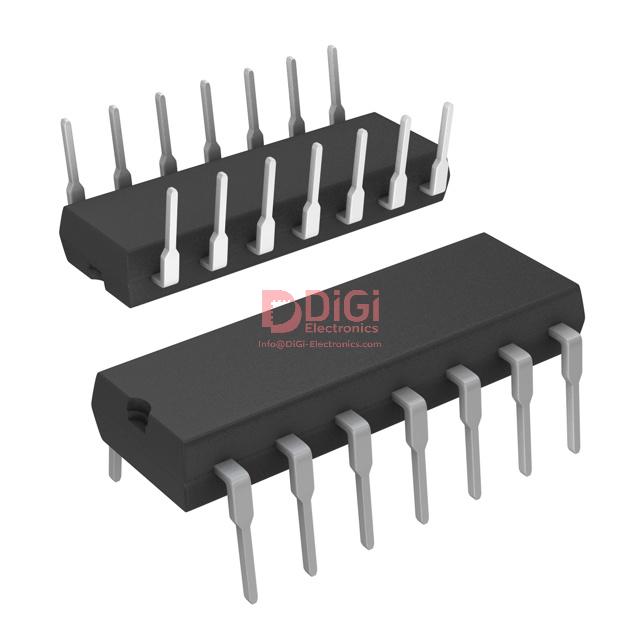

The HEF4070BP is a high-speed CMOS 4-channel, 2-input XOR (Exclusive OR) gate manufactured by Nexperia USA Inc. This integrated circuit is designed for digital logic applications and features four independent XOR gates within a single package.
Key electrical characteristics include a wide supply voltage range from 3V to 15V, a low quiescent current of 4 µA maximum, and output currents of 3mA for both high and low states. The input logic levels are defined between 1.5V to 4V for low and 3.5V to 11V for high. It offers a maximum propagation delay of 55ns at 15V with a 50pF load capacitance.
Designed for through-hole mounting, the HEF4070BP comes in a standard 14-DIP package. It operates reliably across a broad temperature range of -40°C to 85°C, making it suitable for various environmental conditions. This component is part of the 4000B series, known for its robust performance in logic applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.22 | $0.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3V to 15V.
14-DIP (0.300", 7.62mm) with through hole mounting.
-40°C to 85°C.
Quad 2-input XOR (Exclusive OR) gate.
Maximum 55ns at 15V supply with 50pF load.
Each of the four gates has two inputs.
