HD64F7051SFJ20 The Renesas HD64F7051SFJ20 is a 32-bit microcontroller with a 20MHz SH-2 core. It features 128KB of FLASH program memory and 6KB of RAM.
Mfr Part #:

HD64F7051SFJ20

Available from 2 distributors
Mfr Name: Renesas
Renesas
The Renesas HD64F7051SFJ20 is a 32-bit microcontroller with a 20MHz SH-2 core. It features 128KB of FLASH program memory and 6KB of RAM.
✓ Total Stock: 1,803 pcs

HD64F7051SFJ20 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,200 pcs
On Request
1200 pcs On Request 1 On Request On Request 04+ On Request On Request
Romaks Technologies ✓
Non-Authorised Inventory information
603 pcs
On Request
603 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

HD64F7051SFJ20 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

HD64F7051SFJ20 Description

Short technical summary and product information.

This Renesas HD64F7051SFJ20 is a 32-bit microcontroller based on the SH-2 core, operating at a speed of 20MHz. It offers 128KB of program memory in FLASH format and 6KB of RAM.



Key peripherals include DMA and WDT, with data conversion capabilities provided by an A/D converter with 16 channels of 10-bit resolution. The device supports connectivity via EBI/EMI and SCI interfaces.

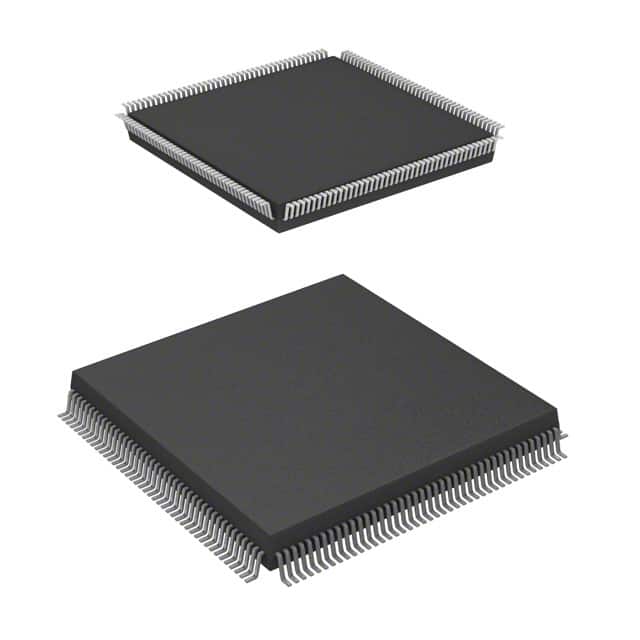

Designed for surface mounting, this microcontroller comes in a 168-BQFP package, with the supplier package specified as 168-QFP (28x28). It operates within a voltage range of 4.5V to 5.5V and has an operating temperature range of -40°C to 85°C (TA).



The internal oscillator type simplifies design, and it provides 102 I/O lines for flexible interfacing.

HD64F7051SFJ20 Quick Information

Product Type: Microcontroller
Canonical Name: Renesas HD64F7051SFJ20 Microcontroller

HD64F7051SFJ20 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

HD64F7051SFJ20 Features

  • 32-bit SH-2 core processor.
  • Operates at a speed of 20MHz.
  • 128KB FLASH program memory.
  • 6KB RAM size.
  • Surface mountable 168-BQFP package.

HD64F7051SFJ20 Applications

  • Suitable for embedded control systems.
  • Features DMA and WDT peripherals.
  • Includes 16-channel 10-bit ADC.
  • Supports EBI/EMI and SCI connectivity.

HD64F7051SFJ20 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the HD64F7051SFJ20?

The operating voltage is 4.5V to 5.5V.

What package type is the HD64F7051SFJ20 supplied in?

It is supplied in a 168-BQFP package, designed for surface mounting.

What is the operating temperature range for this microcontroller?

The operating temperature range is -40°C to 85°C (TA).

What is the program memory size and type?

It has a program memory size of 128KB (128K x 8) and is of FLASH type.
