| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Contact Rating @ Voltage | |
| Delay Time | |
| Function | |
| Mounting Type | |
| Relay Type | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Timing Adjustment Method | |
| Timing Initiate Method | |
| Voltage |

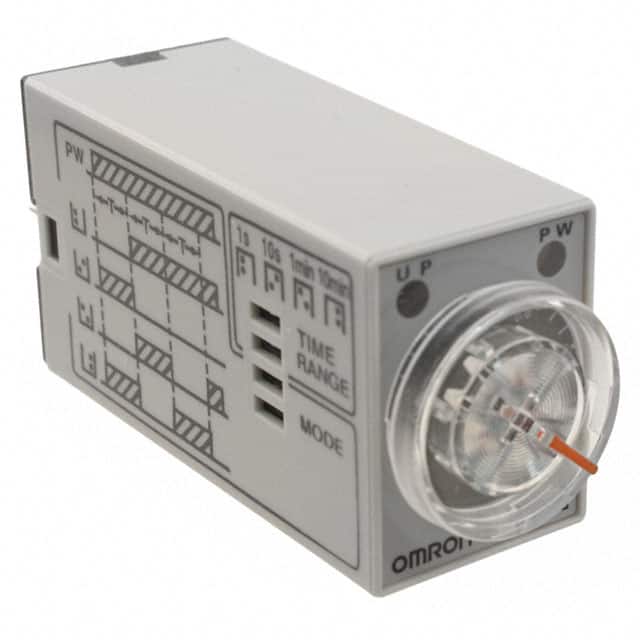

The Omron H3YN-2 AC100-120 is a versatile time delay relay designed for industrial automation applications. It operates with a coil voltage range of 100 to 120VAC and offers a contact rating of 5A at 250VAC.
This relay provides a programmable multi-function capability, allowing for flexible timing adjustments via a hand dial. The delay time can be set from 0.1 seconds up to 10 minutes, initiated by input voltage. It features a DPDT (2 Form C) circuit configuration and is a mechanical relay type.
Designed for socketable mounting, this relay offers a plug-in termination style for easy integration into control systems. Its RoHS3 compliant status indicates adherence to environmental regulations.
The operating voltage is 100 ~ 120 VAC.
The contact rating is 5A @ 250VAC.
The delay time range is from 0.1 Sec to 10 Min.
It features a DPDT (2 Form C) circuit.
Timing is adjusted using a hand dial.
The mounting type is socketable.
