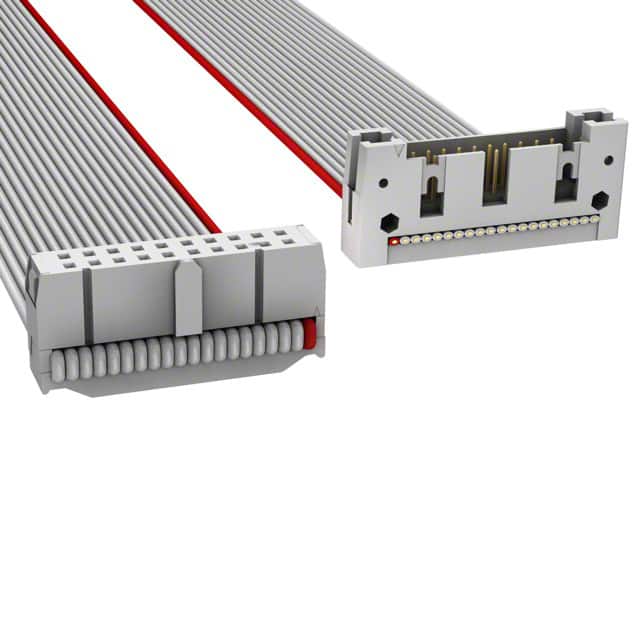

H3DKH-2036G IDC cable assembly from socket to plug with 20 positions in 2 rows, 1.27mm pitch, 0.914m length, gold plated contacts, and gray ribbon cable.
Mfr Part #:

H3DKH-2036G

Available from 1 distributors
Mfr Name: Assmann WSW Components
Assmann WSW Components
IDC cable assembly from socket to plug with 20 positions in 2 rows, 1.27mm pitch, 0.914m length, gold plated contacts, and gray ribbon cable.
✓ Total Stock: 4 pcs
$ Price Range: $2.03 - $2.31

H3DKH-2036G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

H3DKH-2036G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Cable Termination
Color
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Dielectric Withstanding Voltage
Features
Insulator Material
Lead Spacing
Length
Number of Positions
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shielding
View Similar Products (0)

H3DKH-2036G Description

Short technical summary and product information.

The H3DKH-2036G is a rectangular IDC cable assembly from Assmann WSW Components. It features a socket to plug configuration with 20 positions arranged in 2 rows at a 1.27mm pitch. The cable is 914.40mm (3.00 feet) long, gray ribbon style, and unshielded. Contacts are phosphor bronze with gold flash over nickel, and the insulator is PBT 30% glass fiber rated UL 94V-0. The socket includes a strain relief and polarizing key; the plug has a polarizing key. Electrical ratings include a current capacity of 1A and a dielectric withstanding voltage of 500V AC. The operating temperature range is -40°C to +85°C. The assembly is listed as RoHS3 compliant, MSL 1, and REACH unaffected. This cable assembly is suitable for internal wiring connections in electronic devices and systems.

H3DKH-2036G Quick Information

Product Type: Rectangular Cable Assembly
Canonical Name: IDC Cable Assembly, Socket to Plug, 20 Positions, 2 Rows, 1.27mm Pitch, 0.914m Length, Gray Ribbon, Unshielded
Subcategory: Rectangular Cable Assemblies

H3DKH-2036G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

H3DKH-2036G Estimated Pricing

Qty Low High
1+ $2.31 $2.31
10+ $2.21 $2.21
25+ $2.03 $2.03

Estimated market price range - modelled values for guidance only, not live distributor offers.

H3DKH-2036G Features

  • 20 positions in 2 rows with 1.27mm pitch.
  • IDC termination for reliable cable connections.
  • Gold plated contacts rated for 1A current.
  • Operating temperature range -40°C to +85°C.
  • Includes polarizing key and strain relief features.

H3DKH-2036G Applications

  • Internal wiring between PCB headers in electronic equipment.
  • Signal and power distribution in control systems.
  • Prototyping and development board connections.
  • Ideal for ribbon cable harness assemblies.

H3DKH-2036G FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the H3DKH-2036G?

-40°C to +85°C.

Is the H3DKH-2036G RoHS compliant?

Yes, listed as RoHS3 compliant.

What is the current rating of this cable assembly?

1A.

How many positions does the H3DKH-2036G have?

20 positions.

What is the pitch of the connector?

1.27mm (0.050").

What is the length of the cable assembly?

914.40mm (3.00 feet).

Does the cable assembly include strain relief?

Yes, the socket features a strain relief, and the plug has a polarizing key.
