| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit | |
| Contact Rating @ Voltage | |
| Delay Time | |
| Frequency | |
| Function | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Relay Type | |
| Reset Time | |
| Termination Style | |
| Timing Adjustment Method | |
| Timing Initiate Method | |
| Voltage |

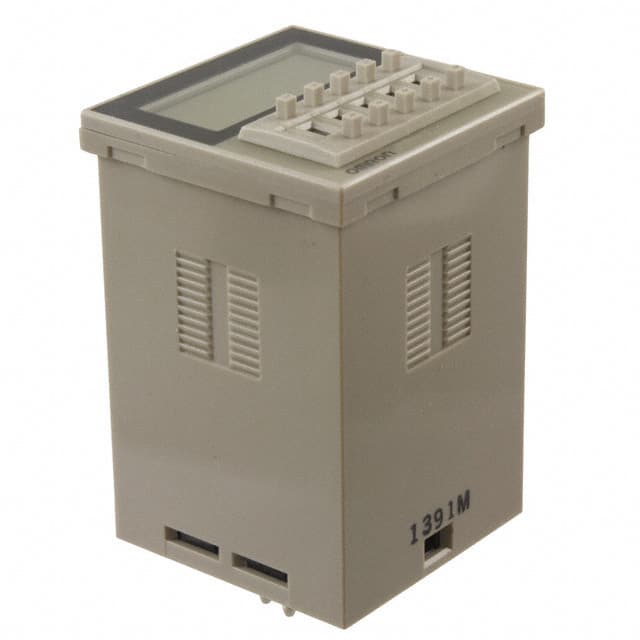

The Omron H3CA-A is a multi-mode, multi-range solid-state timer designed for a variety of applications. It features a digital set with a broad time delay range spanning from 0.1 seconds to 9990 hours, allowing for precise timing control. The unit is housed in a compact, 1/16 DIN plug-in form factor, making it suitable for space-constrained control panels.
Key operational features include an easy-to-read LCD display for time remaining and output status indicators. The timer supports multiple control modes and utilizes thumbwheel switches for selecting time units, control modes, and time limit settings. It operates on a wide supply voltage range of 24 to 240 VAC or 24 to 240 VDC, with a power consumption of 3VA (AC) or 3W (DC).
The output stage consists of a mechanical relay with an S.P.D.T. (1 Form C) contact configuration, rated for 3A at 250VAC. This relay offers a mechanical life of 10,000,000 operations. The timer is designed for various mounting options, including panel, track, and surface mounting, and features an 11-pin plug-in termination style.
Environmental specifications include an operating temperature range of -14 to 131 degrees F and humidity tolerance of 35 to 85% RH. The timer is UL Recognized and CSA Certified, indicating compliance with relevant safety standards.
The operating voltage range is 24 to 240 VAC or 24 to 240 VDC.
The time delay range is from 0.1 seconds to 9,990 hours.
The output contact rating is 3A at 250VAC.
Mounting options include panel, track, and surface mounting.
The operating temperature range is -14 to 131 degrees F.
