| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,776 pcs
|
4776 pcs | On Request | 1 | On Request | On Request | 1728 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Capacitance Change with Temperature | |
| Dissipation Factor | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

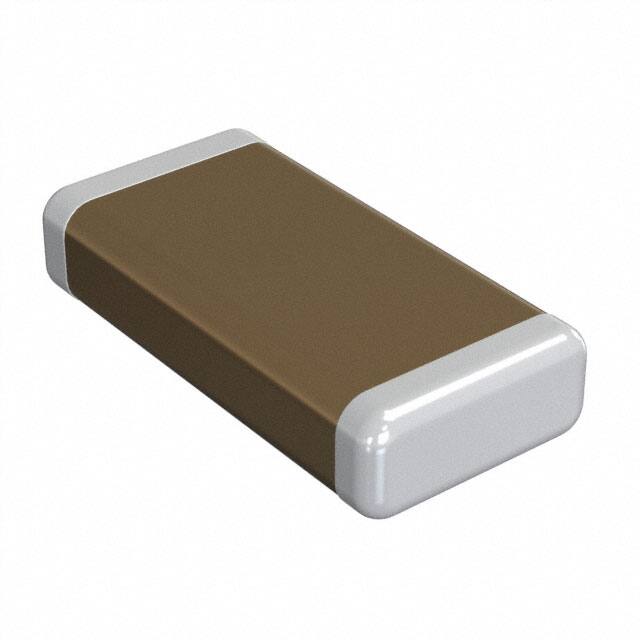

The GRM316R61A475KE19D is a multilayer ceramic capacitor (MLCC) from Murata, offering a nominal capacitance of 4.7µF with a tolerance of ±10%. It is rated for a DC voltage of 10V and features an X5R temperature characteristic, which ensures a capacitance change of ±15% over the operating temperature range of -55°C to +85°C. This makes it suitable for general-purpose applications where moderate temperature stability is required.
The capacitor is housed in a standard 1206 (3216 Metric) package, measuring 3.2mm in length, 1.6mm in width, and a maximum thickness of 0.7mm. It is designed for surface mount mounting (SMT) and is supplied in tape and reel packaging with 4000 pieces per reel (180mm reel) or 10000 pieces for 330mm reel. The dissipation factor is 0.1 maximum, and the insulation resistance is greater than 50Ω·F.
This component is commonly used in decoupling, filtering, and bypass applications in consumer electronics, industrial equipment, and other general-purpose circuits. Its compact size and reliable performance make it a versatile choice for designers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
| 10+ | $0.24 | $0.24 |
| 100+ | $0.19 | $0.19 |
| 500+ | $0.16 | $0.16 |
| 1,000+ | $0.15 | $0.15 |
| 2,000+ | $0.14 | $0.14 |
| 4,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.7 µF with ±10% tolerance.
10V DC.
X5R, with capacitance change of ±15% over -55°C to +85°C.
±10%.
1206 (3216 Metric) surface mount package.
0.1 maximum.
-55°C to +85°C.
