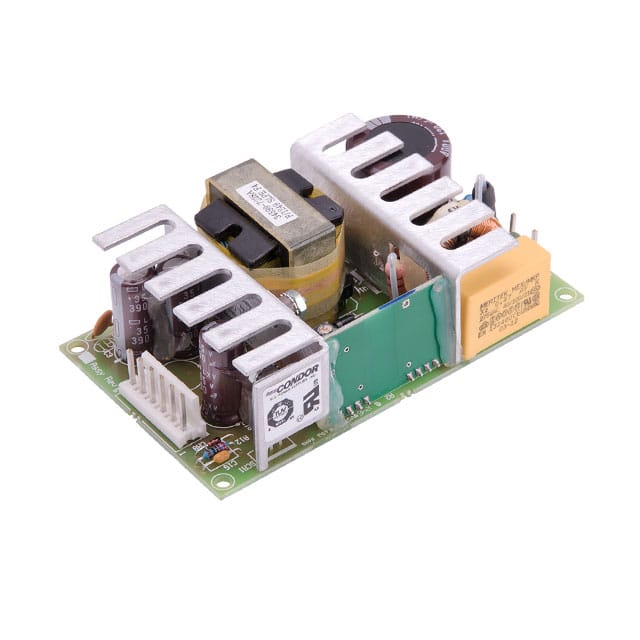

This open frame AC DC converter from SL Power Electronics, part number GLM50DG, is designed for demanding medical applications. It operates with a universal input voltage range of 90 to 264 VAC and delivers a total power of 50W.
The converter provides three distinct output voltages: 5.05V at 4A, 24V at 1.5A, and -12V at 200mA. It features adjustable output capabilities and a universal input, enhancing its flexibility in various system designs.
With a chassis mount type, the GLM50DG is suitable for integration into equipment requiring a robust power solution. Its dimensions are 180.0mm x 63.5mm x 31.8mm. The unit boasts an efficiency of 85% and operates within a temperature range of 0°C to 50°C.
Compliance is indicated by CE, cURus, and TUV approvals. The product is RoHS compliant, has an MSL rating of 1, and is REACH unaffected. A minimum load is required for operation.
The GLM50DG provides three output voltages: 5.05V at 4A, 24V at 1.5A, and -12V at 200mA.
The input voltage range for the GLM50DG is 90 to 264 VAC.
The GLM50DG has a power rating of 50W.
The operating temperature range for the GLM50DG is 0°C to 50°C.
The GLM50DG supports chassis mounting.
