Mfr Part #:

GLM50AG

Mfr Name: SL Power Electronics Manufacture of Condor/Ault Brands

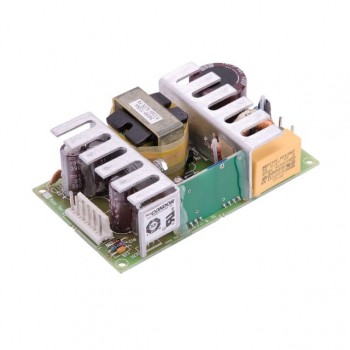

The SL Power Electronics GLM50AG is a 50W AC/DC converter featuring 5.05V, +/-12V outputs and 85% efficiency. It offers adjustable output and universal input.

Stock on Request

GLM50AG Description

Short technical summary and product information.

The GLM50AG from SL Power Electronics is an open frame AC/DC converter designed for medical applications. It delivers a total power of 50W with multiple output voltages including 5.05V, +12V, and -12V.

Key electrical specifications include a universal input voltage range of 90 to 264 VAC and an efficiency of 85%. The converter supports adjustable output and features a chassis mount type for easy integration.

With dimensions of 4.25" L x 2.50" W x 1.25" H (180.0mm x 63.5mm x 31.8mm), the GLM50AG is suitable for various chassis mount applications. It is approved by CE, cURus, and TUV, ensuring compliance with relevant safety standards.

GLM50AG Quick Information

Product Type: AC/DC Converter

Series: GLM50

Canonical Name: GLM50AG AC/DC Converter

Subcategory: AC/DC Converters

GLM50AG Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

GLM50AG Features

50W total power output.
Multiple output voltages: 5.05V, +/-12V.
Universal input voltage range.
85% efficiency rating.
Chassis mount open frame design.

GLM50AG Applications

Powers diagnostic imaging equipment requiring multiple rails.
Supplies stable voltage to patient monitoring systems.
Drives clinical instrumentation with adjustable output needs.
Supports medical device prototyping and bench testing.

GLM50AG FAQs

6 frequently asked questions generated from this part’s specifications.

What are the output voltages for the GLM50AG?

The GLM50AG provides output voltages of 5.05V, +12V, and -12V.

What is the maximum power output of the GLM50AG?

The GLM50AG has a maximum power output of 50W.

What is the input voltage range for the GLM50AG?

The GLM50AG accepts a universal input voltage range of 90 to 264 VAC.

What is the operating temperature range for the GLM50AG?

The operating temperature range for the GLM50AG is 0°C to 50°C.

What type of mounting does the GLM50AG support?

The GLM50AG supports chassis mount.

What agencies have approved the GLM50AG?

The GLM50AG is approved by CE, cURus, and TUV.
